APPLICATION: Vertical
INSTALLATION: Internal or External

Roller insect screens with aluminium side channels for operating and securing the fabric along the side channel, reinforced by horizontal steel rods, with a headbox and with winch or motor operation. Ideal for large dimensions.

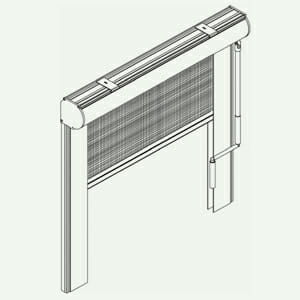

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal, External
HEADBOX: C90/CT90 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox, self-supporting while in motion.
ROLLER TUBE: Ø 42 mm in extruded aluminium with ogive to facilitate maintenance of the fabric
SIDE CHANNELS: G80 in extruded aluminium including brush. Horizontal reinforcement rods in galvanised steel Ø 4.5 mm inserted into pockets welded into the panel every 90 cm to prevent the panel from slipping out of the side channels.
HEM BAR: flat FG42 equipped with lateral sliding plugs
COLOUR: Lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:2.8 gear ratio and limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied to the winch, PVC rod holder.
MOUNTING: front, side
SIZES: Min. L 80 cm – Max L 250 x H 270 cm

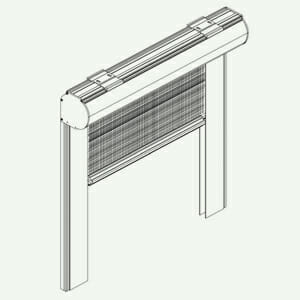

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal, External
HEADBOX: C90/CT90 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox, self-supporting while in motion.
ROLLER TUBE: Ø 49 mm or Ø 52/56 mm in extruded aluminium with ogive to facilitate maintenance of the fabric
SIDE CHANNELS: G80 in extruded aluminium including brush. Horizontal reinforcement rods in galvanised steel Ø 4.5 mm inserted into pockets welded into the panel every 90 cm to prevent the panel from slipping out of the side channels.
HEM BAR: flat FG42 equipped with lateral sliding plugs
COLOUR: Lacquered white RAL 9010, anodised silver
OPERATION: tubular motor 230V/50 Hz M40/M50, complete with up/down limit switch and power cord. Heat protection index and splash-proof index IP44.
MOUNTING: front, side
SIZES:
With roller Ø 49 Min. L 80 cm – Max L 250 x H 270 cm
With roller Ø 52–56 Min. L 80 cm – Max L 330 x H 170 cm

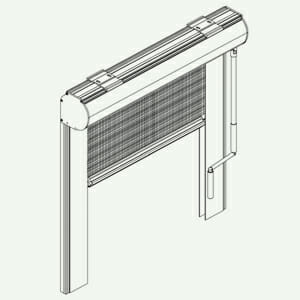

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal, External
HEADBOX: C105/CT105 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox
ROLLER TUBE: Ø 42 mm roll in extruded aluminium or Ø 78 mm in galvanised steel with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS: G80 in extruded aluminium including brush. Horizontal reinforcement rods in galvanised steel Ø 4.5 mm inserted into pockets welded into the panel every 90 cm to prevent the panel from slipping out of the side channels.
HEM BAR: flat FG42 equipped with lateral sliding plugs, with additional stiffening profile for large-sized sunshades – over 4 metres
COLOUR: Lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:5 gear ratio without limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied to the winch, PVC rod holder.
MOUNTING: front, side
SIZES:
With roller Ø 42 Min. L 100 cm – Max L 250 x H 320 cm
With roller Ø 78 Min. L 100 cm – Max L 450 x H 320 cm
Mandatory reinforcement profile with a length of 400 cm

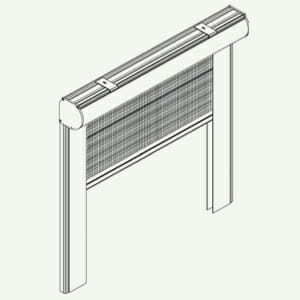

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal, External
HEADBOX: C105/CT105 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox
ROLLER TUBE: roller Ø 52/56 mm in extruded aluminium or Ø 78 mm in galvanised steel with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS: lateral – G80 in extruded aluminium including brush. Horizontal reinforcement rods in galvanised steel Ø 4.5 mm inserted into pockets welded into the panel every 90 cm to prevent the panel from slipping out of the side channels.
HEM BAR: flat FG42 equipped with lateral sliding plugs, with additional stiffening profile for large-sized sunshades – over 4 metres
COLOUR: Lacquered white RAL 9010, anodised silver
OPERATION: tubular motor 230V/50 Hz M50, complete with up/down limit switch and power cord. Heat protection index and splash-proof index IP44.
MOUNTING: front, side
SIZES:
With roller Ø 52–56 Min. L 100 cm – Max L 350 x H 400 cm
With roller Ø 78 Min. L 100 cm – Max L 450 x H 260 cm
Mandatory reinforcement profile with a length of 400 cm
