APPLICATION: Vertical
INSTALLATION: Internal

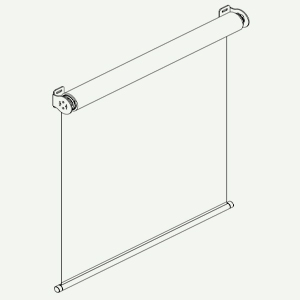

Thanks to its ability to cover windows up to 8 metres in width, Extreme is the ideal solution for the most ambitious sun awning projects, creating new opportunities for grandiose and elegant technical sunshades. Mounting brackets in painted iron with the possibility of front or ground mounting – Extreme is the perfect system for indoor applications in private or public environments.

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal
BRACKETS: 150 × 130 mm (with roller Ø 110-130), 200 × 180 mm (with roller Ø 160) in galvanised and lacquered iron or in AISI 304 stainless steel on request
ROLLER TUBE: Ø 110-130-160 mm in extruded aluminium with double ogive
HEM BAR: Exposed FR23 in extruded aluminium with PVC plugs; threaded for widths over 600 cm.
COLOUR: thermo-lacquered white RAL 9010, anodised silver
OPERATION: tubular motor 230V/50Hz, with up/down limit switch and power cable Heat protection index and splash-proof index IP44.
MOUNTING: wall or ceiling
SIZES:
With roller Ø 110 Min. L 150 cm – Max L 600 x H 500 cm
With roller Ø 130 Min. L 150 cm – Max L 700 x H 600 cm
With roller Ø 160 Min. L 150 cm – Max L 800 x H 1000 cm

MATCHING FABRICS
