The top of the range, elegant and sophisticated. Sunshades with a contemporary design, perfect for integration with home automation.

Elegant, sophisticated and with a contemporary style – these are the Laylight interior blinds. The functionality of the technical screening and the fabric as a furnishing element meet and give life to the Lineo and Sintesi collections.

The models adapt to all assembly needs, whilst the materials chosen for the finishes – such as wood and aluminium – further enhance the spaces in which they are installed.

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal

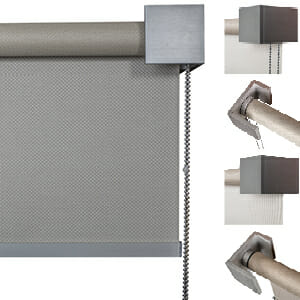

MOUNTING BRACKETS: choose between square (Deciso), rounded (Sinuoso) or the Cubo model, in aluminium with satin or glossy finish or else matt white lacquered with RAL 9003
ROLLER TUBE: CHAIN: Ø 39 mm or Ø 49 mm (for systems including compensation spring), both in extruded aluminium with ogive to facilitate maintenance of the fabric
MOTOR: Ø 44 mm (for widths up to 250 cm) or Ø 49 mm (for widths up to 320 cm) both
Ø 49 mm in ogive-free extruded aluminium to facilitate maintenance of the fabric
HEM BAR: optional squared FQ20 in extruded aluminium with satin-finish, glossy or white PVC plugs or with round FL20 plugs
in extruded aluminium with plugs in satin-finish, glossy or matt white RAL 9003 aluminium. Hem Bar Finish: satin-finished, glossy, matt white Ral 9003
OPERATION: CHAIN: with EASY LOCK friction control in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the brackets. Drive 6 chain with Ø 4.5 mm white or metal beads in PVC or nylon, equipped with a child safety release device pursuant to the UNI EN13120:2014 standard
MOTOR: tubular motor 230V/50Hz M40, complete with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44. Switch excluded.
As an optional extra, motor with electronic limit switch or motor with integrated radio receiver.
MOUNTING: wall or ceiling
OPTIONAL : Mounting brackets Cubo, Sinuoso, Deciso, Sinuoso XL, Deciso XL

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal
MOUNTING BRACKETS AND PELMET: in aluminium with satin, glossy or matt-white lacquered RAL 9003 finish. 6 cm high pelmet complete with end caps. On request, transparent curtain holders to add a classic decorative fabric.
ROLLER TUBE:
CHAIN: Ø 39 mm or Ø 49 mm (for systems including compensation spring), both in extruded aluminium with ogive to facilitate maintenance of the fabric
MOTOR: Ø 44 mm (for widths up to 250 cm) or Ø 49 mm (for widths up to 320 cm), both in extruded aluminium with ogive to facilitate maintenance
of the fabric.
HEM BAR: optional squared FQ20 in extruded aluminium with satin-finish, glossy or white PVC plugs or with round FL20 plugs
in extruded aluminium with plugs in satin-finish, glossy or matt white RAL 9003 aluminium. Hem Bar Finish: satin-finished, glossy, matt white Ral 9003
OPERATION: CHAIN: with EASY LOCK friction control in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the brackets. Drive 6 chain with Ø 4.5 mm white or metal beads in PVC or nylon, equipped with a child safety release device pursuant to the UNI EN13120:2014 standard
MOTOR: tubular motor 230V/50Hz M40, complete with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44. Switch excluded.
As an optional extra, motor with electronic limit switch or motor with integrated radio receiver.
wall or ceiling.
MOUNTING: wall or ceiling

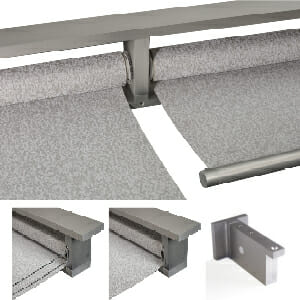

OPTIONAL : double chain module, double motor module, double chain roller, double motor roller, double module with double roller and chain overlap, double module with double roller and motor overlap.

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
MOUNTING BRACKETS AND PELMET: in aluminium with satin, glossy or matt-white lacquered RAL 9003 finish. Round pelmet complete with end caps. On request, transparent curtain holders to add a classic decorative fabric.
ROLLER TUBE: CHAIN: Ø 39 mm or Ø 49 mm (for systems including compensation spring), both in extruded aluminium with ogive to facilitate maintenance of the fabric
MOTOR: Ø 44 mm (for widths up to 250 cm) or Ø 49 mm (for widths up to 320 cm), both in extruded aluminium with ogive to facilitate maintenance of the fabric
HEM BAR: optional squared FQ20 in extruded aluminium with satin-finish, glossy or white PVC plugs or with round FL20 plugs
in extruded aluminium with plugs in satin-finish, glossy or matt white RAL 9003 aluminium. Hem Bar Finish: satin-finished, glossy, matt white Ral 9003
OPERATION: CHAIN: with EASY LOCK friction control in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the brackets. Chain drive
Size 6 chain with Ø 4.5 mm white or metal beads in PVC or nylon, equipped with a child safety release device pursuant to the UNI EN13120:2014 standard
MOTOR: with tubular motor 230V/50Hz, M40, with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44. Switch excluded.
As an optional extra, motor with electronic limit switch or motor with integrated radio receiver.
MOUNTING: wall or ceiling

MATCHING FABRICS

CONTACT US FOR INFORMATION OR DOWNLOAD OUR COMPLETE CATALOGUE HERE
