The SG Series presents awnings models with headboxes in various shapes and finishes. The headbox protects both the operation and the fabric whilst improving the aesthetic effect, thus becoming part of the décor. For this reason, we offer a range of headboxes in different shapes and colours, in order to satisfy all architectural needs.

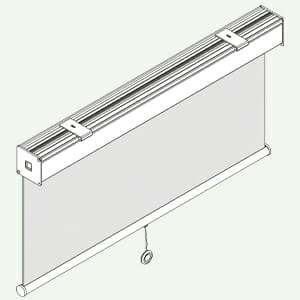

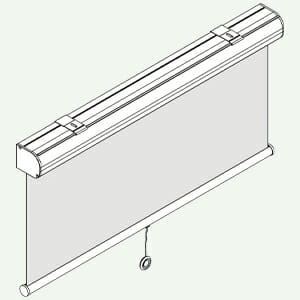

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: CT55 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: Ø 30 mm in extruded aluminium with ogive to facilitate the insertion and reassembly of the fabric
HEM BAR: FD21 in extruded aluminium with transparent PVC plugs and ring with pull cord
OPERATION: Ø 30 mm spring with C98 harmonic steel wire and intermediate stop
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black) at extra cost.
SIZES: Min. L 60 cm – Max L 160 x H 210 cm

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: CT55 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: Ø 30 mm in extruded aluminium with ogive to facilitate the insertion and reassembly of the fabric
HEM BAR: FD21 in extruded aluminium with transparent PVC plugs and ring with pull cord
OPERATION: Ø 30 mm spring with C98 harmonic steel wire and intermediate stop
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black) at extra cost.
SIZES: Min. L 60 cm – Max L 160 x H 210 cm

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: CT55 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: Ø 30 mm in extruded aluminium with ogive to facilitate the insertion and reassembly of the fabric
HEM BAR: FD21 in extruded aluminium with transparent PVC plugs and ring with pull cord
OPERATION: Ø 30 mm spring with C98 harmonic steel wire and intermediate stop
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black) at extra cost.
SIZES: Min. L 60 cm – Max L 160 x H 210 cm

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C63 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Pairs of black or white plastic side end caps
ROLLER TUBE: in Ø 30 mm extruded aluminium with ogive to facilitate insertion/reassembly of the fabric
HEM BAR: FR23 in extruded aluminium with PVC plugs, complete with PVC ring with pre-formed cord.
COLOUR: Thermo-lacquered white RAL 9010, anodised silver
OPERATION: Ø 30 mm spring with C98 harmonic steel wire and intermediate stop
MOUNTING: front or ceiling
SIZES:
Minimum width 44 cm

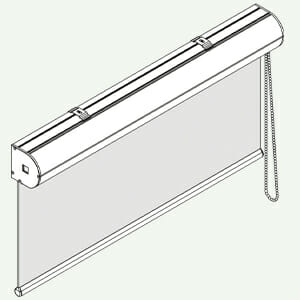

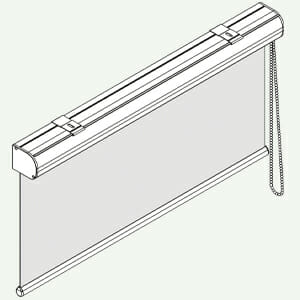

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C63 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Pairs of black or white PVC side end caps
ROLLER TUBE: in Ø 30 mm extruded aluminium with ogive to facilitate insertion/reassembly of the fabric Friction control in PVC complete with cover on the opposite side with a return pin to facilitate the disassembly of the roller from the headbox.
HEM BAR: FR23 Series 2000/FP33 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, anodised silver
OPERATION: Drive 6 chain in nylon with Ø 4.5 mm PVC beads equipped with a child safety release device
MOUNTING: front or ceiling
SIZES:
Min. L 60 cm – Max L 160

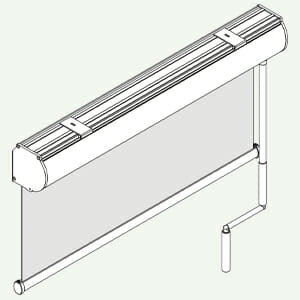

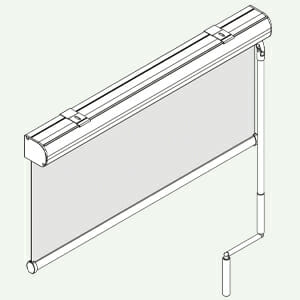

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C63 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Pairs of black or white plastic side end caps
ROLLER TUBE: in Ø 30-36 mm extruded aluminium with ogive to facilitate maintenance on the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:2.8 gear ratio and limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied directly to the winch, PVC rod holder
MOUNTING: front or ceiling
SIZES:
With roller Ø 30 mm Min. L 80 cm – Max L 180 x H 230 cm
With roller Ø 36 mm Min. L 80 cm – Max L 220 x H 200 cm

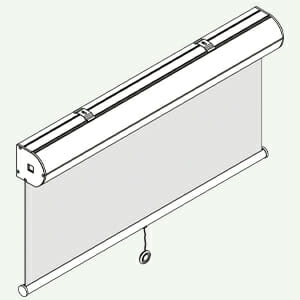

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: in Ø 30-39 mm extruded aluminium with ogive to facilitate insertion/reassembly of the fabric
HEM BAR: FR23 in extruded aluminium with PVC plugs, complete with plastic ring with pre-formed cord
COLOUR: Thermo-lacquered white RAL 9010, anodised silver
OPERATION: Ø 30–39 mm spring with C98 harmonic steel wire and intermediate stop
MOUNTING: front or ceiling
SIZES:
With roller Ø 30 mm Min. L 80 cm – Max L 180 x H 250 cm
With roller Ø 39 mm Min. L 80 cm – Max L 250 x H 250 cm

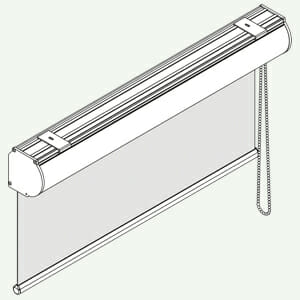

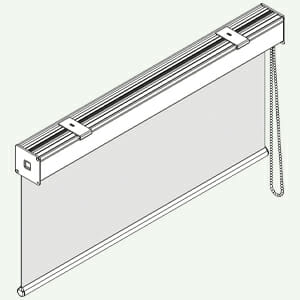

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: in Ø 39 mm extruded aluminium with ogive to facilitate insertion/reassembly of the fabric EASY LOCK friction control in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the headbox with the option of a return spring unit to facilitate the rise of the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, anodised silver
OPERATION: Drive 6 chain in nylon with Ø 4.5 mm PVC beads equipped with a child safety release device
MOUNTING: front or ceiling
SIZES:
Min. L 60 cm – Max L 240 x H 250 cm

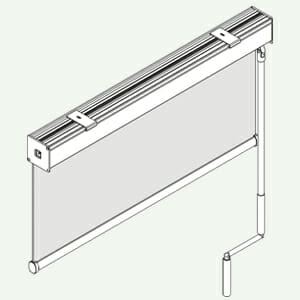

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: in Ø 30-36-42 mm extruded aluminium with ogive to facilitate maintenance on the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:2.8 gear ratio and limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied directly to the winch, PVC rod holder
MOUNTING: front or ceiling
SIZES:
With roller Ø 30 mm Min. L 80 cm – Max L 180 x H 230 cm
With roller Ø 36 mm Min. L 80 cm – Max L 220 x H 250 cm
With roller Ø 42 mm Min. L 230 cm – Max L 270 x H 250 cm

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: in Ø 30-36-42 mm extruded aluminium with ogive to facilitate maintenance on the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:2.8 gear ratio and limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied directly to the winch, PVC rod holder
MOUNTING: front or ceiling
SIZES:
With roller Ø 30 mm Min. L 80 cm – Max L 180 x H 230 cm
With roller Ø 36 mm Min. L 80 cm – Max L 220 x H 250 cm
With roller Ø 42 mm Min. L 230 cm – Max L 270 x H 250 cm

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 in extruded aluminium with rear cover plate. Pairs of black or white PVC side end caps
ROLLER TUBE: in Ø 30-36-42 mm extruded aluminium with ogive to facilitate maintenance on the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:2.8 gear ratio and limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied directly to the winch, PVC rod holder
MOUNTING: front or ceiling
SIZES:
With roller Ø 30 mm Min. L 80 cm – Max L 180 x H 230 cm
With roller Ø 36 mm Min. L 80 cm – Max L 220 x H 250 cm
With roller Ø 42 mm Min. L 230 cm – Max L 270 x H 250 cm

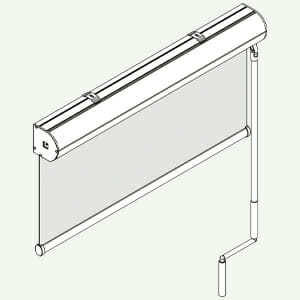

CHARACTERISTICS

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C90/CT90 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox
ROLLER TUBE: in Ø 42-49 mm extruded aluminium with ogive to facilitate insertion/reassembly of the fabric
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:2.8 gear ratio and limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied directly to the winch, PVC rod holder.
MOUNTING: front or ceiling
SIZES:
With roller Ø 42 mm Min. L 80 cm – Max L 200 x H 320 cm
With roller Ø 49 mm Min. L 80 cm – Max L 290 x H 320 cm

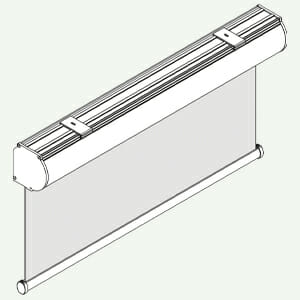

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C90/CT90 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox
ROLLER TUBE: in Ø 49-60 mm extruded aluminium with ogive to facilitate maintenance on the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, anodised silver
OPERATION: single-phase tubular motor 230V/50 Hz M40/M50 with limit switch adjustment, thermal protection and protection index IP44.
MOUNTING: front or ceiling
SIZES:
With roller Ø 49 mm Min. L 80 cm – Max L 250 x H 300 cm
With roller Ø 60 mm Min. L 80 cm – Max L 350 x H 220 cm

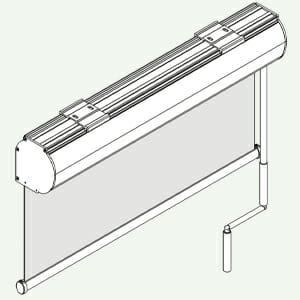

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C105/CT105 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox
ROLLER TUBE: in Ø 78 mm extruded aluminium with ogive to facilitate maintenance on the fabric.
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, silver anodised – Removable winch handle in anodised silver/black
OPERATION: zamak winch with a 1:5 gear ratio without limit switch. Complete with Ø 13 mm tubular rod in extruded aluminium, removable with a magnetic attachment. Rotating handle with PVC-coated handle; joint applied directly to the winch, PVC rod holder.
MOUNTING: front or ceiling
SIZES:
Min. L 80 cm – Max L 450 x H 380 cm

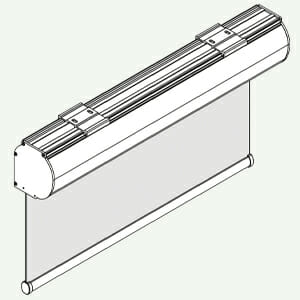

CHARACTERISTICS:

APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C105/CT105 in extruded aluminium consisting of a fixed part and a movable part that can be inspected. Dual side end caps in aluminium, painted in the same colour as the headbox
ROLLER TUBE: in extruded aluminium Ø 60 mm, in galvanised steel
Ø 78 mm extruded aluminium with ogive to facilitate maintenance of the fabric
HEM BAR: FR23 in extruded aluminium with PVC plugs
COLOUR: Thermo-lacquered white RAL 9010, anodised silver
OPERATION: single-phase tubular motor 230V/50 Hz M50 with limit switch adjustment, thermal protection and protection index IP44
MOUNTING: front or ceiling
SIZES:
With roller Ø 60 mm Min. L 80 cm – Max L 300 x H 400 cm
With roller Ø 78 mm Min. L 80 cm – Max L 450 x H 400 cm

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C150 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of end caps in galvanised iron painted in the same colour as the headbox.
ROLLER TUBE: Ø 78-85 mm in galvanised steel or Ø 110 mm in extruded aluminium with ogive
HEM BAR: FR23 in extruded aluminium with PVC plugs
OPERATION: single-phase tubular motor 230V/50Hz M50 with limit switch adjustment. Heat protection index and splash-proof index IP44.
Switch excluded.
MOUNTING: ceiling. Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

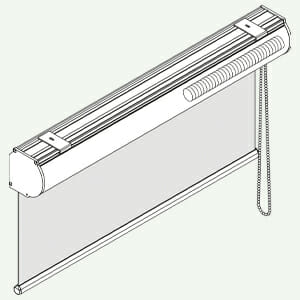

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C90/CT90 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of side end caps in aluminium painted in the same colour as the headbox
ROLLER TUBE: Ø 49 mm in extruded aluminium with ogive to facilitate the insertion and reassembly of the fabric
HEM BAR: F21 2012 Series in extruded aluminium with PVC plugs (white, grey, black) FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: chain combined with EASY LOCK friction control in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the brackets and return spring to facilitate lifting the fabric. Drive 6 chain in nylon with Ø 4.5 mm PVC beads equipped with a child safety release device pursuant to the UNI EN13120:2014 standard
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.
SIZES: Min. L 80 cm – Max L 300 x H 300 cm

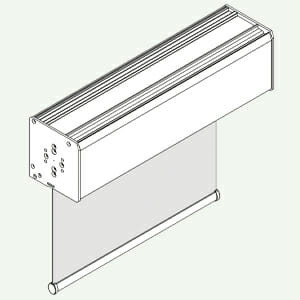

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: Square C104 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of side end caps in aluminium painted in the same colour as the headbox
ROLLER TUBE: Ø 78 mm in galvanised steel with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: zamak winch with a 1:4.7 gear ratio without limit switch. Extruded aluminium tubular rod Ø 13 mm, removable with a magnetic attachment; rotating handle with PVC-coated grip, joint applied directly to the gear, PVC rod stop.
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: Square C104 in extruded aluminium consisting of a fixed part and a movable part that can be inspected, complete with plastic trim and pairs of side end caps in aluminium painted in the same colour as the headbox
ROLLER TUBE: Ø 60 mm in extruded aluminium, Ø 78 mm in galvanised steel with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: single-phase tubular motor 230V/50Hz M50 with limit switch adjustment. Heat protection index and splash-proof index IP44. Switch excluded.
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

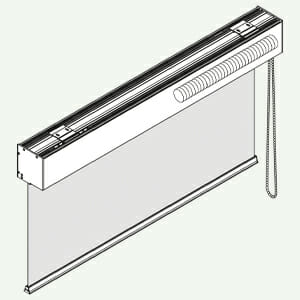

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C91 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of side end caps in aluminium painted in the same colour as the headbox
ROLLER TUBE: Ø 39 mm in extruded aluminium with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: chain with EASY LOCK friction control command in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the headbox with the option of a return spring unit to facilitate the rise of the fabric. Drive 6 chain in nylon with Ø 4.5 mm PVC beads equipped with a child safety release device pursuant to the UNI EN13120:2014 standard
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C91 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of side end caps in aluminium painted in the same colour as the headbox
ROLLER TUBE: Ø 44 or Ø 49 mm in extruded aluminium with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: chain combined with EASY LOCK friction control in PVC complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the brackets and return spring to facilitate lifting the fabric. Drive 6 chain in nylon with Ø 4.5 mm PVC beads equipped with a child safety release device pursuant to the UNI EN13120:2014 standard
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

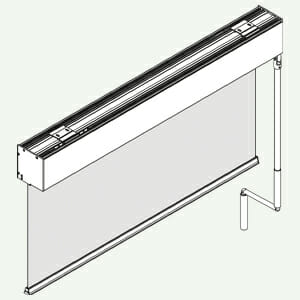

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C91 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of side end caps in aluminium painted in the same colour as the headbox
ROLLER TUBE: Ø 42-49 mm in extruded aluminium with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: zamak winch with a 1:3.3 gear ratio and limit switch. Extruded aluminium tubular rod Ø 13 mm, removable with a magnetic attachment; rotating handle with PVC-coated grip, joint applied directly to the gear, PVC rod stop.
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C90/CT90 in extruded aluminium consisting of a fixed part and a movable part that can be inspected; pairs of side end caps in aluminium painted in the same colour as the headbox.
ROLLER TUBE: Ø 44-60 mm in extruded aluminium with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs FR23 hem bar with Ø 2.5 mm stainless steel cord side channel variant
OPERATION: single-phase tubular motor 230V/50Hz M40 with limit switch adjustment. Heat protection index and splash-proof index IP44. Switch excluded.
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.

CHARACTERISTICS:

APPLICATION: vertical
INSTALLATION: internal

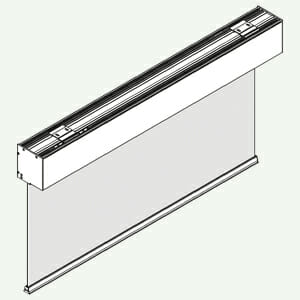

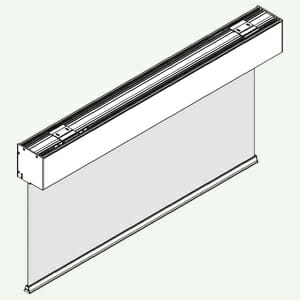

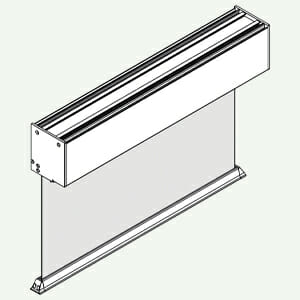

HEADBOX: Squared C124 in extruded aluminium composed of a fixed part and two movable parts that can be inspected, one frontal and the other closing to allow the complete internal rewinding of the roller including the hem bar; pairs of aluminium end caps painted in the same colour as the headbox. End caps for side attachment are at an extra cost.
ROLLER TUBE: Ø 60 mm in extruded aluminium, Ø 78 mm in galvanised steel with ogive
HEM BAR: Retractable FS20 in extruded aluminium with PVC plugs
OPERATION: single-phase tubular motor 230V/50Hz M50 with limit switch adjustment. Heat protection index and splash-proof index IP44. Switch excluded.
MOUNTING: on the ceiling Wall mounting with L-shaped brackets in painted iron (white, grey, black, ivory, brown) at extra cost.
