APPLICATION: Vertical
INSTALLATION: Internal

The modern double-fabric sunshades for total control of the light in your environment:
Control the light
Control the space
Control your time

Stripes is the modern roller blind consisting of a fabric broken up into horizontal bands, interspersing transparent and semi-shading. By rolling and unrolling the sunshade, it is possible to position the bands in various ways, creating the desired level of brightness, with plays of transparencies that envelop your environment.

LIGHT, HOWEVER YOU WANT
The bands of fabric move by crossing each other and creating an opening and closing effect, with an elegant control of the light in infinite solutions.

THE SPACE, HOWEVER YOU WANT
Elegant and evergreen, they exalt the furnishings in modern and even small-size rooms.
Their reduced dimensions and ease of operation leave a lot of space available.

THE TIME, HOWEVER YOU WANT
Thanks to the special Stripes fabrics, these sunshades are extremely practical. It is no longer necessary to dismantle, wash and iron them. To remove any dirt, just a simple feather duster or a soft cloth will do! And any stains can be eradicated with a damp cloth. Practical and comfortable, leaving you more time to dedicate to yourself and your family.

ANYWHERE, WITHOUT PROBLEMS
The sunshades from the Stripes collection are waterproof. They are resistant to humidity and thus are also perfectly suitable for bathrooms and kitchens. They can be fastened to the ceiling, on the front and even in series along the same wall.

STRIPES FABRICS
The Stripes fabric collection features more than twenty different models, each with an extensive range of colours and tones.

CHARACTERISTICS

APPLICATION: Vertical
INSTALLATION: Internal
BRACKETS: 52×66 mm/52×80 mm in painted iron with PVC bracket covers
ROLLER TUBE: CHAIN: Ø 39 mm in extruded aluminium with ogive, for widths up to 240 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
MOTOR: Ø 44 mm in extruded aluminium with ogive, for widths up to 250 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
HEM BAR: Round FT12 in satin-finish aluminium complete with satin-finish plugs
COLOUR: White, Black, Grey
OPERATION: CHAIN: Easy Lock friction control with chain drive 6 – Ø 4.5 mm. Chain options: metallic or white nylon with plastic beads
MOTOR: tubular motor 230V/50Hz M40, complete with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44.
MOUNTING: extruded aluminium pre-assembly profile for ceiling or frontal installation
CHAIN SIZE:
With roller Ø 39 mm Min. L 60 – Max L 240 x H 300 cm,
With roller Ø 49 mm Min. L 60 – Max L 280 x H 300 cm
MOTOR DIMENSIONS:
With roller Ø 44 mm Min. L 80 – Max L 250 x H 300 cm,
With roller Ø 49 mm Min. L 80 – Max L 280 x H 300 cm
SUPPLEMENTARY: Deciso, Sinuous and angular magnetic bracket cover in satin-finish aluminium.

CHARACTERISTICS

APPLICATION: Vertical
INSTALLATION: Internal

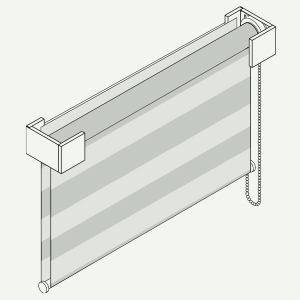

BRACKETS: “CUBE” in aluminium with a bar covered with velcro for securing the panel
ROLLER TUBE: CHAIN: Ø 39 mm in extruded aluminium with ogive, for widths up to 240 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
MOTOR: : Ø 44 mm in extruded aluminium with ogive, for widths up to 250 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
HEM BAR: Round FT12 in satin-finish aluminium complete with satin-finish plugs
COLOUR: satin finish or matt white lacquer
OPERATION: CHAIN: Easy Lock friction control with chain drive 6 – Ø 4.5 mm. Chain options: metallic or white nylon with plastic beads
MOTOR: tubular motor 230V/50Hz M40, complete with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44.
MOUNTING: extruded aluminium pre-assembly profile for ceiling or frontal installation
SIZES:
CHAIN:
With roller Ø 39 mm Min. L 60 – Max L 240 x H 300 cm,
With roller Ø 49 mm Min. L 60 – Max L 280 x H 300 cm
MOTOR:
With roller Ø 44 mm Min. L 80 – Max L 250 x H 300 cm,
With roller Ø 49 mm Min. L 80 – Max L 280 x H 300 cm

CHARACTERISTICS

APPLICATION: Vertical
INSTALLATION: Internal

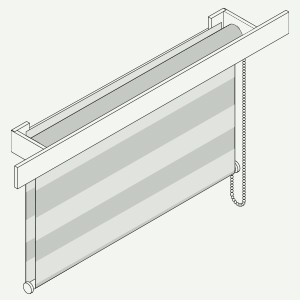

PELMET: Lineo Dritto 80 complete with stoppers With standard winding bar with velcro for securing the panel. Reversed winding of the fabric fitted on the pelmet.
ROLLER TUBE: Ø 39 mm in extruded aluminium with ogive, for widths up to 240 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
HEM BAR: Round FT12 in satin-finish aluminium complete with satin-finish plugs
COLOUR: satin finish or matt white lacquer
OPERATION: – CHAIN: Easy Lock friction control with chain drive 6 – Ø 4.5 mm. Chain options: metallic or white nylon with plastic beads.
– MOTOR: Tubular motor 230V/50Hz M40, complete with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44.
MOUNTING: extruded aluminium pre-assembly profile for ceiling or frontal installation
SIZES:
With roller Ø 39 mm Min. L 60 – Max L 240 x H 300 cm,
With roller Ø 49 mm Min. L 60 – Max L 280 x H 300 cm

CHARACTERISTICS

APPLICATION: Vertical
INSTALLATION: Internal

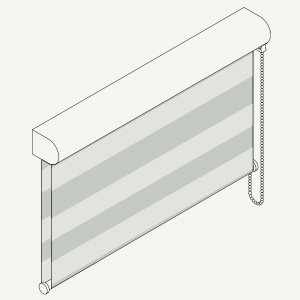

HEADBOX: CTS in extruded aluminium consisting of a fixed part and a movable part that can be inspected along with a pair of side end caps in painted aluminium.
ROLLER TUBE: CHAIN: Ø 39 mm in extruded aluminium with ogive, for widths up to 240 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
MOTOR: Ø 44 mm in extruded aluminium with ogive, for widths up to 250 cm/Ø 49 mm in extruded aluminium with ogive, for widths up to 280 cm
HEM BAR: Round FT12 in satin-finish aluminium complete with satin-finish plugs
COLOUR: painted white RAL 9010, black RAL 9005 matt, anodised silver
OPERATION: CHAIN: Easy Lock friction control with chain drive 6 – Ø 4.5 mm. Chain options: metallic or white nylon with plastic beads. MOTOR: tubular motor 230V/50Hz M40, complete with mechanical limit switch and power cable. Heat protection index and splash-proof index IP44.
MOUNTING: extruded aluminium pre-assembly profile for ceiling or frontal installation
CHAIN SIZE:
With roller Ø 39 mm Min. L 60 – Max L 240 x H 280 cm,
With roller Ø 49 mm Min. L 60 – Max L 280 x H 260 cm
DIMENSIONS WITH “BAYOU” FABRIC:
With roller Ø 39 mm Min. L 60 – Max L 240 x H 240 cm,
With roller Ø 49 mm Min. L 60 – Max L 280 x H 180 cm
MOTOR DIMENSIONS:
With roller Ø 44 mm Min. L 80 – Max L 250 x H 280 cm,
With roller Ø 49 mm Min. L 80 – Max L 280 x H 260 cm
DIMENSIONS WITH “BAYOU” FABRIC:
With roller Ø 44 mm Min. L 80 – Max L 250 x H 240 cm,
With roller Ø 49 mm Min. L 80 – Max L 280 x H 180 cm

MATCHING FABRICS
