ZOOMTECH® | SG Series with headbox

  1. Home
  2. Roller blinds
  3. Free-hanging roller blinds
  4. ZOOMTECH® | SG Series with headbox

Application: Vertical
Installation: Indoor

The SG series, with patented Zoomtech® technology, features models of blinds with various shapes and finishes of casings. The casing protects both the mechanism and the fabric, enhancing the aesthetic effect and thus becoming a decorative element.

Render di una tenda a rullo Zoomtech serie SG 227 con cassonetto

CHARACTERISTICS:

Roller tube with patented Zoomtech® technology: Ø 44 mm extruded aluminum
Application: vertical
Installation: indoor
Headbox: C106 squared extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting
Retractable hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: ceiling mounting. Supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
Standard colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Dimensions: with Ø 44 – Min. W 200 – Max. W 500 x H 300 cm

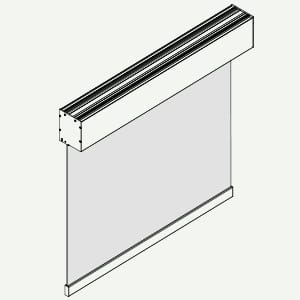

Render di una tenda a rullo Zoomtech serie SG con cassonetto

CHARACTERISTICS:

Roller tube with patented Zoomtech® technology: Ø 60 mm extruded aluminum
Application: vertical
Installation: indoor
Headbox: squared C124 extruded aluminum headbox with two removable covers and aluminum end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting. The headbox allows to hide the tube including hem bar when shade is completely wrapped
Retractable hem bar: FZ47 retractable extruded aluminum weighted flat hem bar with PVC end caps and brush. PVC waterproof strip (white, grey, black) on request; it remains visible outside the headbox
Operation: motorised operation; 230V/50Hz tubolar motor, with electronic limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: ceiling mounting. Supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
Standard colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Dimensions: with Ø 60 – Min. W 300 – Max. W 600 x H 320 cm

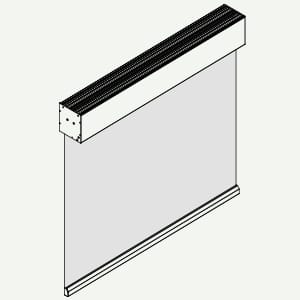

Render di una tenda a rullo Zoomtech serie SG 260 con cassonetto

CHARACTERISTICS:

Roller tube with patented Zoomtech® technology: Ø 78 mm galvanized steel
Application: vertical
Installation: indoor
Headbox: C160 extruded aluminum headbox with two removable covers and powder coated zinc plated steel end cheeks
Hem bar: FZ47V extruded aluminum hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz tubolar motor, with electronic limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: direct ceiling mounting or supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
Standard colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Dimensions: with Ø 78 – Min. W 200 – Max. W 700 x H 360 cm

MATCHING FABRICS

FILTRANTI:
M-Screen 8505/8501
Sunscreen Satiné 5500

OPACHI:
Colortex

OSCURANTI:
Darktex
Kibo

REFERENCES

Click here for information or download our complete catalogue here
