APPLICATION: Vertical
INSTALLATION: Internal

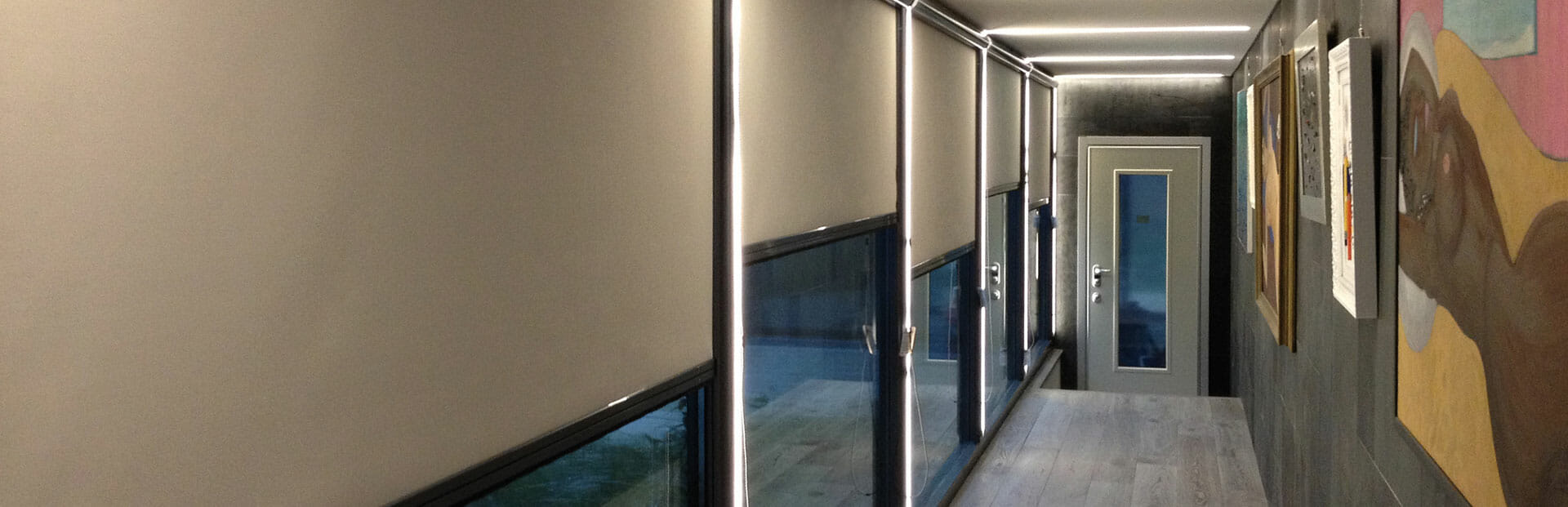

Among its guided roller blinds, Resstende presents its B Series of studded roller blinds. The main feature that differentiates these products from other models is their dual function: to hold the fabric thanks to buttons/studs and, at the same time, to close the lateral spaces to avoid blade of lights if the curtain has a darkening function. Suitable only for small to medium-sized curtains (up to L 250 cm; for internal curtains).
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Indoor, small and medium-sized curtains
HEADBOX: C55 / CT55 made of extruded aluminum with rear cover. Pairs of self-supporting PVC side heads inside the rail.
ROLLER TUBE: Ø 30 mm extruded aluminum roller with ogive to facilitate the insertion/reassembly of the cloth
SIDE CHANNELS: G39 / GAF39 made extruded aluminum with a dual function of holding the fabric through plastic buttons and closing the side spaces to avoid the blades of light in the case of darkening curtains
HEM BAR: FG42 plate made of extruded aluminum with PVC slides, complete with a latch and featuring hook and pull cord
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: spring Ø 30 mm, C98 harmonic wire without stop
INSTALLATION: front, side
SIZES: L minimum 44 cm – Max 160 x 180 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C55 / CT55 made of extruded aluminum with rear cover. Pairs of self-supporting PVC side heads inside the rail.
ROLLER TUBE: roller Ø 30 mm made of extruded aluminum with ogive to facilitate the insertion/reassembly of the cloth. PVC clutch control complete with cover on the opposite side and re-entering pin to facilitate the disassembly of the roller from the box
SIDE CHANNELS: G39 / GAF39 made of extruded aluminum with a dual function of holding the fabric through plastic buttons and closing the side spaces to avoid the blades of light in the case of darkening curtains
BACK: FP33 made of extruded aluminum with PVC sliding doors
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: with step 6 nylon chain with Ø 4.5 mm PVC grains equipped with “child safety device” release
MOUNTING: front, side
SIZES: Min. L 60 cm – Max 160 x 180 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADCASE: C55 / CT55 made of extruded aluminum with rear cover. Pairs of self-supporting PVC side heads inside the rail.
ROLLER TUBE: roller Ø 30 mm made of extruded aluminum with ogive to facilitate the insertion/reassembly of the cloth. PVC clutch control complete with cover on the opposite side and re-entering pin to facilitate the disassembly of the roller from the box
SIDE CHANNELS: G49 / GAF49 made of extruded aluminum with a dual function of holding the fabric through plastic buttons and closing the side spaces to avoid the blades of light in the case of darkening curtains
BACK: FG42 made of extruded aluminum with PVC sliding doors
COLOUR: thermo-lacquered white RAL 9010, Anodized silver – Anodized silver / black winch control rod
OPERATION: with Zamak gear ratio 1: 2.8 rpm with limit switch, complete with PVC rod stop and Ø 13 mm extruded aluminum tubular rod, jointed PVC-coated handle, joint applied directly to the gear
FIXING: front, side
SIZES: Min. L 80 cm – Max 180 x 210 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Indoor, small / medium size curtains
HEADBOX: C63 made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of self-supporting PVC side heads inside the rail
ROLLER TUBE: roller Ø 30 mm in extruded aluminum with ogive to facilitate insertion/reassembly of the sheet. Pairs of self-supporting PVC side heads directly into the rail
SIDE CHANNELS: G39 / GAF39 made of extruded aluminum with a dual function of holding the fabric through plastic buttons and closing the side spaces to avoid the blades of light in the case of darkening curtains
HEM BAR: extruded aluminum FG42 plate with PVC slides, complete with a latch with hook and pull cord
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: Ø 30 mm spring, C98 harmonic wire without stop
MOUNTING: front, side
SIZES: L minimum 44 cm – Max 160 x 230 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C63 made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of self-supporting PVC side heads inside the rail
ROLLER TUBE: Ø 30 mm extruded aluminum roller with ogive to facilitate the insertion/reassembly of the sheet. PVC friction control complete with cap on the opposite side and retractable pin to facilitate the disassembly of the roller from the box
SIDE CHANNELS: extruded aluminum G39 / GAF39 with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a darkening curtain. On request, GT45 telescopic tracks for irregular walls or recessed systems
HEM BAR: extruded aluminum FP33 plate with sliding PVC caps
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: with step 6 nylon chain with Ø 4.5 mm PVC grains equipped with “child safety device” release
MOUNTING: front, side
SIZES: Min. L 60 cm – Max 160 x 230 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: C63 made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of self-supporting PVC side heads inside the rail
ROLLER TUBE: Ø 30 mm extruded aluminum roller with ogive to facilitate the insertion/reassembly of the sheet. PVC friction control complete with cap on the opposite side with retractable pin to facilitate the disassembly of the roller from the box
SIDE CHANNELS: extruded aluminum G39 / GAF39 with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a blackout curtain. On request, GT45 telescopic tracks for irregular walls or recessed systems
HEM BAR: extruded aluminum FG42 plate in with sliding PVC caps
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: with step 6 nylon chain with Ø 4.5 mm PVC grains equipped with “child safety device” release
MOUNTING: front, side
SIZES: Min. L 60 cm – Max 180 x 230 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 made of extruded aluminum with rear cover. Pairs of self-supporting PVC side heads inside the rail
ROLLER TUBE: Ø 39 mm extruded aluminum roller with ogive to facilitate the insertion/reassembly of the sheet. PVC EASY LOCK friction control complete with a cap on the opposite side with a retractable pin to facilitate the disassembly of the roller from the box
SIDE CHANNELS: lateral G39 / GAF39 made of extruded aluminum with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a darkening curtain. On request, GT45 telescopic tracks for irregular walls or recessed systems
HEM BAR: extruded aluminum FG42 plate with sliding PVC caps
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: with step 6 nylon chain with Ø 4.5 mm PVC grains equipped with “child safety device” release
MOUNTING: front, side
SIZES: Min. L 60 cm – Max 200 x 220 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 made of extruded aluminum with rear cover. Pairs of self-supporting PVC side heads inside the rail
ROLLER TUBE: Ø 36 mm extruded aluminum roller with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS: G49 / GAF49 made of extruded aluminum with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a darkening curtain. On request, GT45 telescopic tracks for irregular walls or recessed systems
HEM BAR: extruded aluminum FG42 plate with sliding PVC caps
COLOUR: thermo-lacquered white RAL 9010, Anodized silver – anodized Silver / Black removable winch control rod
OPERATION: with Zamak gear ratio 1: 2.8 rpm with limit switch, complete with PVC rod stop and Ø 13 mm extruded aluminum tubular rod, jointed PVC-coated handle, joint applied directly to the gear
MOUNTING: front, side
SIZES: Min. L 80 cm – Max 220 x 220 cm
CHARACTERISTICS:
APPLICATION: Vertical
INSTALLATION: Internal
HEADBOX: CT76 made of extruded aluminum with rear cover. Pairs of self-supporting PVC side heads inside the rail
ROLLER TUBE: Ø 40 mm extruded aluminum roll
SIDE CHANNELS: G49 / GAF49 made of extruded aluminum with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a darkening curtain. On request, GT45 telescopic tracks for irregular walls or recessed systems
HEM BAR: extruded aluminum FG42 plate with sliding PVC caps
COLOUR: thermo-lacquered white RAL 9010, Anodized silver
OPERATION: single-phase tubular motor 230V / 50 Hz M40 with limit switch adjustment, thermal protection, IP44 protection index
MOUNTING: front, side
SIZES: Min. L 80 cm – Max 220 x 220 cm
CHARACTERISTICS:
APPLICATION: vertical
INSTALLATION: internal
BOX: C90 / CT90 made extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. Heads for side attachment are provided as a supplement
ROLLER TUBE: Ø 49 mm extruded aluminum with ogive to facilitate the insertion and reassembly of the cloth
SIDE CHANNELS: G39 / GAF39 made of extruded aluminum with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a darkening curtain
HEM BAR: FG42 flat in extruded aluminum with sliding PVC caps
MANEUVER: chain combined with EASY LOCK PVC friction control complete with a cap on the opposite side and retractable pin to facilitate the disassembly of the roller from the brackets and return spring to facilitate the lifting of the fabric. Step 6 nylon chain with Ø 4.5 mm PVC grains equipped with “child safety device” release according to the UNI EN13120: 2014 standard
FIXING: front, side or ceiling. As a supplement, lateral fixing of the box
DIMENSIONS: Min. L 80 cm – Max 240 x H 280 cm
CHARACTERISTICS:
APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C90 / CT90 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. Heads for side attachment as a supplement.
ROLLER TUBE: Ø 42 mm in extruded aluminum with ogive to facilitate the insertion and reassembly of the sheet
SIDE CHANNELS: G49 / GAF49 made of extruded aluminum with a dual function of retaining the fabric with plastic buttons and closing the side spaces to avoid the blades of light in the case of a darkening curtain
HEM BAR: FG42 flat in extruded aluminum with sliding PVC caps
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; joined PVC-coated handle, joint applied directly to the winch, PVC rod stop
MOUNTING: front, side or ceiling. As a supplement, lateral fixing of the box
SIZES: Min. L 80 cm – Max 260 x H 300 cm
CHARACTERISTICS:
APPLICATION: vertical
INSTALLATION: internal
HEADBOX: C90 / CT90 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. Heads for side attachment are provided as a supplement
ROLLER TUBE: Ø 49 mm extruded aluminum with ogive to facilitate the insertion/reassembly of the sheet
SIDE CHANNELS: G49 / GAF49 made of extruded aluminum with a dual function of retaining the fabric through plastic buttons and closing the lateral spaces to avoid the blades of light if the curtain has a darkening function
HEM BAR: FG42 flat made of extruded aluminum with sliding PVC caps
OPERATION: single-phase tubular motor 230V / 50Hz M40 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: front, side or ceiling. As a supplement, lateral fixing of the box
SIZES: Min. L 80 cm – Max 260 x H 300 cm
