Application: Vertical
Installation: Indoor/outdoor
Wind resistance: Class 2/3

The CRISTAL ZIP systems are fitted with transparent PVC fabrics that guarantee protection from wind and rain granting the external view. Ideal for enhancing views and panoramas and maintaining a link between indoor and outdoor environments. The vertical joints give an aesthetic effect of high-level.

Product branded for

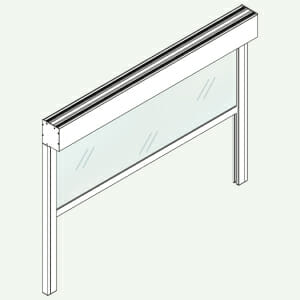

CHARACTERISTICS

Application: vertical
Installation: indoor/outdoor
Headbox: C104 extruded aluminum headbox with removable cover and aluminum end cheeks that permit the box to be fitted directly to the side channels
or alternatively galvanized steel end cheeks for side mounting
Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal
Side channels: GS65 extruded aluminum side channels in two parts with winged inner rail in PVC. The ZIP system ensures smooth operation keeping the fabric inside the channels
Hem bar: F56 extruded aluminum weighted flat hem bar with PVC end caps and PVC waterproof strip (white, grey, black). It remains visible outside the headbox
Colour: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, silver anodised
Operation: crank operation, TS gear box ratio 1:9 in zama without endstop. Ø 13 mm removable aluminum crank rod with magnetic coupling, PVC coated jointed handle and PVC clip
Side channels mounting: wall or mounting in recess
Headbox mounting: box self supporting on side channels or side mounting of the headbox
Sizes: Min. W 100 cm x H 100 cm – Max W 450 x H 280 cm
Fabric: transparent CRISTAL, 100% PVC, stabilized fabric, vertical welded seams. On supplement CRISTAL GREY SHADED, gtot 0,33 class 2

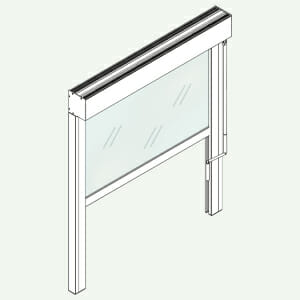

CHARACTERISTICS

Application: vertical
Installation: indoor/outdoor
Headbox: C104 in alluminio estruso composto da una parte fissa e una mobile ispezionabile; coppie di testate in alluminio verniciato in tinta con il cassonetto autoportanti in guida o in alternativa testate per attacco laterale in ferro zincato e verniciato
Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal
Side channels: GS65 extruded aluminum side channels in two parts with winged inner rail in PVC. The ZIP system ensures smooth operation keeping the fabric inside the channels
Hem bar: F56 extruded aluminum weighted flat hem bar with PVC end caps and PVC waterproof strip (white, grey, black). It remains visible outside the headbox
Colour: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, silver anodised
Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Side channels mounting: wall or mounting in recess
Headbox mounting: box self supporting on side channels or side mounting of the headbox
Sizes: Min. W 100 cm x H 100 cm – Max W 450 x H 280 cm
Fabric: transparent CRISTAL, 100% PVC, stabilized fabric, vertical welded seams. On supplement CRISTAL GREY SHADED, gtot 0,33 class 2

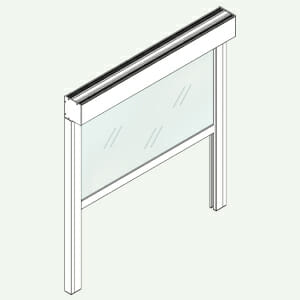

CHARACTERISTICS

Application: vertical
Instllation: indoor/outdoor
Headbox: C124 extruded aluminum headbox with two fixed covers and one removable cover, examinable from below. Aluminum end cheeks that permit the box to be fitted directly to the side channels or alternatively galvanized steel end cheeks for side mounting
Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal
Side channels: GS65 extruded aluminum side channels in two parts with winged inner rail in PVC. The ZIP system ensures smooth operation keeping the fabric inside the channels
Hem bar: F56 extruded aluminum weighted flat hem bar with PVC end caps and PVC waterproof strip (white, grey, black). It remains visible outside the headbox
Colour: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, silver anodised
Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Side channels mounting: wall or mounting in recess
Headbox mounting: box self supporting on side channels or side mounting of the headbox
Sizes: W 100 cm x H 100 cm – Max W 450 x H 320 cm
Fabric:transparent CRISTAL, 100% PVC, stabilized fabric, vertical welded seams. On supplement CRISTAL GREY SHADED, gtot 0,33 class 2
