APPLICATION: Horizontal, Inclined, Vertical
INSTALLATION: Internal

The DB SERIES offers various models of horizontal roller blinds, guided with double headbox and especially suitable for skylights and small – medium-sized inclined windows. The system is also suitable for vertical applications where, for example, a bottom-up operation is required.
Unlike vertical roller blinds, horizontal blinds add an opposing spring (or a second motor in the TTS version) to keep the fabric in traction in any position.
The awnings are supplied with an angular pre-assembly aluminum profile applied to the tracks and fixed on the box heads.

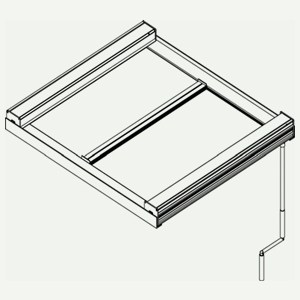

CHARACTERISTICS

APPLICATION: horizontal / inclined. Small curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C63 box made of extruded aluminum, composed of a fixed and a movable part that can be inspected. Pairs of black or white PVC side heads
ROLLER TUBE: extruded aluminum Ø 30 mm
OPPOSITE ROLL: extruded aluminum Ø 30 mm. Return spring in harmonic steel wire contained in the opposing roller to keep the sheet in traction in any position
SIDE CHANNELS: G49 made of extruded aluminum with a dual function of containing the studded fabric inside the rail during sliding and accommodating the dragging belts hooked to the bottom through the slides. On the winch side, to the roller through a cable inserted in the ogive.
HEM BAR: flat FG42 in extruded aluminum with sliding PVC caps
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; PVC-coated jointed handle; joint applied directly to the winch
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES:
With roller Ø 30 mm Min. L 40 cm x H 60 cm – Max L 120 x H 120 cm

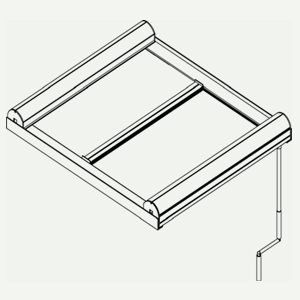

CHARACTERISTICS

APPLICATION: horizontal / inclined. Small curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: CT76 double box made of extruded aluminum, with rear cover. Pairs of black or white PVC side heads
ROLLER TUBE: extruded aluminum Ø 36 mm
OPPOSITE ROLL: extruded aluminum Ø 30 mm n. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G49 made of extruded aluminum with a dual function of containing the studded fabric inside the rail during sliding and accommodating the dragging belts hooked to the bottom through the slides. On the winch side, to the roller through a cable inserted in the ogive.
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; PVC-coated jointed handle; joint applied directly to the winch
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min L 60 x H 80 cm – Max L 120 x H 160 cm

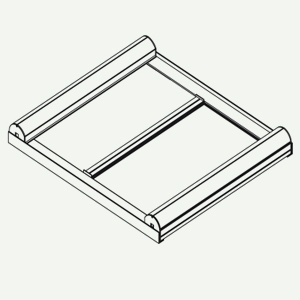

CHARACTERISTICS

APPLICATION: horizontal / inclined. Small curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: CT76 double box made of extruded aluminum, with rear cover. Pairs of black or white PVC side heads
ROLLER TUBE: extruded aluminum Ø 49 mm
OPPOSITE ROLL: extruded aluminum Ø 30 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G49 made of extruded aluminum with a dual function of containing the studded fabric inside the rail during sliding and accommodating the dragging belts hooked to the bottom through the slides. On the winch side, to the roller through a cable inserted in the ogive.
HEM BAR: flat FG42 MADE OF extruded aluminum with sliding PVC caps
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min. L 80 x H 80 cm – Max L 120 x H 180 cm

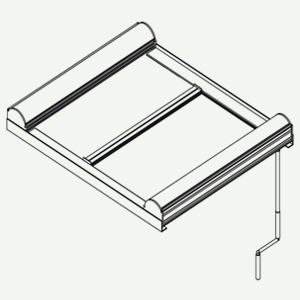

CHARACTERISTICS

APPLICATION: horizontal / inclined. Small curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C90 / CT90 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of aluminum side heads painted in the same color as the box
ROLLER TUBE: extruded aluminum Ø 42 mm
OPPOSITE ROLL: extruded aluminum Ø 30 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G49 made of extruded aluminum with a dual function of containing the studded fabric inside the rail during sliding and accommodating the dragging belts hooked to the bottom through the slides, and, on the winch side, to the roller through a cable inserted in the ogive.
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; PVC-coated jointed handle; joint applied directly to the winch
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min. L 80 x H 80 cm – Max L 120 x H 180 cm

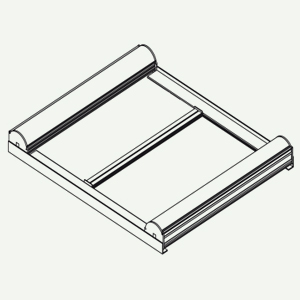

CHARACTERISTICS

APPLICATION: horizontal / inclined. Small curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C90 / CT90 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of aluminum side heads painted in the same color as the box
ROLLER TUBE: extruded aluminum Ø 49 mm
OPPOSITE ROLL: galvanized iron Ø 43 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G49 made of extruded aluminum with a dual function of containing the studded fabric inside the rail during sliding and accommodating the dragging belts hooked to the bottom through the slides. On the winch side, to the roller through a cable inserted in the ogive.
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
DIMENSIONS: Min. L 80 x H 80 cm – Max L 120 x H 200 cm

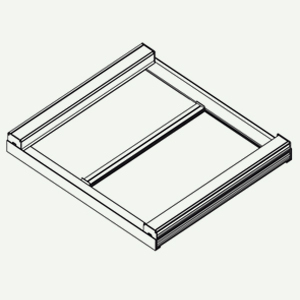

CHARACTERISTICS

APPLICATION: horizontal / inclined. Small curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C63 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of black or white PVC side heads
ROLLER TUBE: extruded aluminum Ø 49 mm
OPPOSITE ROLL: Ø 30 mm in extruded aluminum. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G49 made of extruded aluminum with a dual function of containing the studded fabric inside the rail during sliding and accommodating the dragging belts hooked to the bottom through the slides. On the winch side, to the roller through a cable inserted in the ogive.
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: With roller Ø 49 Min. L 50 cm x H 60 cm – Max L 100 x H 100 cm

MATCHING FABRICS
