APPLICATION: Horizontal, Inclined, Vertical
INSTALLATION: Internal

With its DR Series, Resstende presents horizontal roller blinds equipped with a fabric reinforced with steel slats. The system ensures an optimal and more prolonged hold of the fabric inside the tracks and a closing of the side spaces to avoid blades of lights if the curtain has a darkening function.
It is suitable for medium to large-sized skylights and sloped windows, indoor use only. The horizontal awning is supplied assembled on angular profiles for an easy on-site installation.

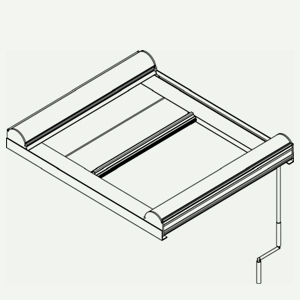

CHARACTERISTICS:

APPLICATION: horizontal / inclined. Medium-sized curtains. The system is also suitable for vertical applications where, for example, a bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C90 / CT90 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of aluminum side head painted in the same color as the box
ROLLER TUBE: extruded aluminum Ø 42 mm
OPPOSITE ROLL: galvanized iron Ø 43 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G80 made of extruded aluminum, including brush; dual function of containing the fabric during sliding and accommodating the drag belts. Ø 4.5 mm galvanized steel horizontal reinforcement rods inserted in special pockets, welded into the sheet at a distance of about 90 cm to prevent the sheet from spilling out
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps and including additional FG42R stiffening profile
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; PVC-coated jointed handle; joint applied directly to the winch.
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min. L 80 x H 100 cm – Max L 160 x H 250 cm

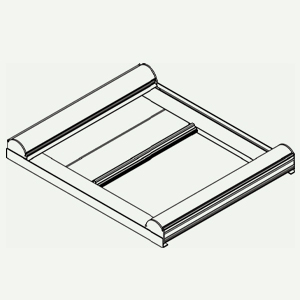

CHARACTERISTICS:

APPLICATION: horizontal / inclined. Small-sized curtains. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C90 / CT90 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of aluminum side head painted in the same color as the box
ROLLER TUBE: extruded aluminum Ø 49 mm
OPPOSITE ROLL: galvanized iron Ø 43 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G80 made of extruded aluminum, including brush; dual function of containing the fabric during sliding and accommodating the drag belts. Ø 4.5 mm galvanized steel horizontal reinforcement rods inserted in special pockets, welded into the sheet at a distance of about 90 cm to prevent the sheet from spilling out
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps and including additional FG42R stiffening profile
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min. L 80 x H 100 cm – Max L 160 x H 250 cm

CHARACTERISTICS:

APPLICATION: horizontal / inclined. Medium-sized tents. The system is also suitable for vertical applications where, for example, bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C105 / CT105 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of aluminum side head painted in the same color as the box
ROLLER TUBE: galvanized steel Ø 78 mm
OPPOSITE ROLL: galvanized steel Ø 70 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G80 made of extruded aluminum, including brush; dual function of containing the fabric during sliding and accommodating the drag belts. Ø 4.5 mm galvanized steel horizontal reinforcement rods inserted in special pockets, welded into the sheet at a distance of about 90 cm to prevent the sheet from spilling out
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps and including additional FG42R stiffening profile
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M50 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min. L 80 x H 100 cm – Max L 200 x H 350 cm

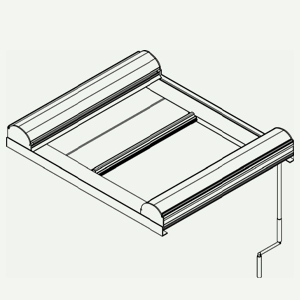

CHARACTERISTICS:

APPLICATION: horizontal / inclined. Small-sized curtains. The system is also suitable for vertical applications where, for example, a bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C105 / CT105 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of aluminum side head painted in the same color as the box
ROLLER TUBE: galvanized steel Ø 78 mm
OPPOSITE ROLL: galvanized steel Ø 70 mm. Return spring in harmonic steel wire contained in the opposing roller, able to keep the sheet in traction in any position
SIDE CHANNELS: G80 made of extruded aluminum, including brush; dual function of containing the fabric during sliding and accommodating the drag belts. Ø 4.5 mm galvanized steel horizontal reinforcement rods inserted in special pockets, welded into the sheet at a distance of about 90 cm to prevent the sheet from spilling out
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps and including additional FG42R stiffening profile
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, rpm ratio 1: 4.7 without limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; jointed PVC-coated handle, joint applied directly to the winch.
MOUNTING: awning is supplied pre-assembled on a 40x25x3 mm angular aluminum profile
SIZES: Min. L 100 x H 100 cm – Max L 200 x H 300 cm

CHARACTERISTICS:

APPLICATION: horizontal / inclined. Small-sized curtains. The system is also suitable for vertical applications where, for example, a bottom-up operation is required.
INSTALLATION: for internal use only
HEADBOX: double C150 box made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of galvanized iron end caps painted in the same color as the box
ROLLER TUBE: galvanized steel Ø 78 mm
OPPOSITE ROLL: galvanized steel Ø 70 mm
SIDE CHANNELS: G80 made of extruded aluminum, including brush; dual function of containing the fabric during sliding and accommodating the drag belts. Ø 4.5 mm galvanized steel horizontal reinforcement rods inserted in special pockets, welded into the sheet at a distance of about 90 cm to prevent the sheet from spilling out
HEM BAR: flat FG42 made of extruded aluminum with sliding PVC caps and including additional FG42R stiffening profile
COLOUR: White RAL 9010, matt black RAL 9005, anodized silver
OPERATION: double single-phase tubular motor 230V / 50Hz M50. Thermal protection and IP44 protection index against water splashes; TTS control unit to keep the fabric in traction in any position. Switch not included.
MOUNTING: awning is supplied pre-assembled on a 50x30x3 mm aluminum corner profile
