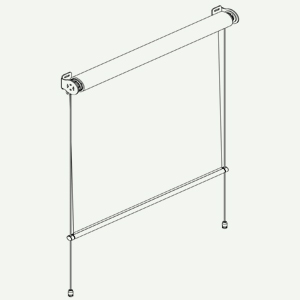

EXTREME L1 SYSTEM

  1. Home
  2. Roller blinds
  3. GUIDED ROLLER BLINDS
  4. EXTREME L1 SYSTEM

APPLICATION: Vertical
INSTALLATION: Internal

Thanks to its ability to cover windows up to 8-meter width, Extreme is the suitable solution for the most ambitious solar roofing projects. It creates new opportunities to realize grandiose and elegant technical curtains. With cable tracks complete with stainless steel tensioner, painted iron fixing brackets and the possibility of front or floor mounting, Extreme is the perfect system for indoor or outdoor applications, both in private and public environments.

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal, external
BRACKETS: 140×150 mm (with tubes Ø 110/130 mm) / 180×200 mm (with tube Ø 160 mm) steel powder coated brackets and interior plates. The angle of the interior plate can be adjusted at intervals of 22° to distance the cable from the wall. Supplement for AISI 316 stainless steel brackets
ROLLER TUBE: Ø 110/130/160 mm extruded aluminium
SIDE CHANNELS: Ø 6 mm, 19 strand stainless steel (AISI 316) wire cable guides
HEM BAR: FD42 extruded aluminum hem bar, ballasted internally with galvanized iron profi le, complete with white or black POM endcaps with eyelets for sliding in the guides
COLOUR: glossy white RAL 9010, matt grey RAL 7016, matt white RAL 9016, smooth micaceous grey, glossy ivory RAL 1013, matt black RAL 9005, glossy brown RAL 8017, silver anodised
OPERATION: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
UPPER MOUNTING: wall or ceiling
LOWER MOUNTING: stainless steel cable tensioning unit for floor mounting or stainless steel AISI 316 brackets for wall/window frame mounting
SIZES:
With roller Ø 110 Min. L 150 cm x H 200 cm – Max L 500 cm x H 500 cm
With roller Ø 130 Min. L 150 cm x H 200 cm – Max L 600 cm x H 600 cm
With roller Ø 160 Min. L 150 cm x H 200 cm – Max L 700 cm x H 500 cm/L 500 cm x H 800 cm
