horizontal traction kit

  1. Home
  2. Roller blinds
  3. GUIDED ROLLER BLINDS
  4. horizontal traction kit

Application: horizontal
Installation: outdoor

The TRACTION KIT is an exclusive forced traction mechanism designed to guarantee exceptional fabric tension, suitable for outdoor applications. The system efficiently contrast the force of the wind using the controlled energy of gas pistons situated inside the round hem bar.

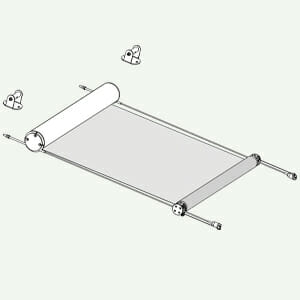

CHARACTERISTICS:

Application: horizontal
Installation: indoors/outdoors
Brackets: 140×150 mm steel powder coated brackets and interior plates. The angle of the interior plate can be adjusted at intervals of 22° to distance the cable from the wall. Supplement for AISI 304 stainless steel brackets. Supplement for AISI 304 stainless steel brackets
Roller tube: Ø 110 mm extruded aluminium tube with slot to facilitate fabric removal
Side channels: Ø 6 mm, 19 strand stainless steel (AISI 316) wire cable guides
Hem bar with incorporated forced traction mechanism: FD75 Ø 75 mm extruded aluminium round tube with gas pistons, powder coated die-cast aluminium caps assembly with 33 return pulleys and AISI 316 stainless steel cable section Ø 2 mm, 49 wires
Colours: glossy white RAL 9010, matt white RAl 9016, glossy ivory RAL 1013, glossy brown RAL 8017, matt grey RAL 7016, smooth micaceus grey, matt black RAL 9005, silver anodised
Operation: motorised operation; 230V/50Hz M60 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Upper mounting: horizontal or vertical plane
Lower mounting: AISI 316 stainless steel cable tensioning unit for vertical plane mounting or, on request, stainless steel AISI 304 brackets for horizontal plane mounting

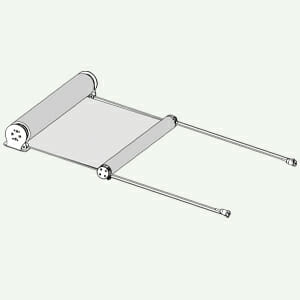

CHARACTERISTICS:

Application: horizontal
Installation: outdoors
Headbox: CT135 extruded aluminium round headbox with removable cover. Powder coated die-cast aluminium end cheeks with insert for rapid mounting on the upper mounting brackets. Brackets on supplement
Roller tube: Ø 85 mm galvanized steel tube with slot to facilitate fabric removal
Side channels: Ø 6 mm, 19 strand stainless steel (AISI 316) wire cable guides
Hem bar with incorporated forced traction mechanism: FD75 Ø 75 mm extruded aluminium round tube with gas pistons, powder coated die-cast aluminium caps assembly with 33 return pulleys and AISI 316 stainless steel cable section Ø 2 mm, 49 wires
Colours: glossy white RAL 9010, matt white RAl 9016, glossy ivory RAL 1013, glossy brown RAL 8017, matt grey RAL 7016, smooth micaceus grey, matt black RAL 9005, silver anodised
Operation: motorised operation; 230V/50Hz M50 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Upper mounting: stainless steel AISI 316 standard brackets for vertical or horizontal plane mounting, on supplement
Lower mounting: stainless steel cable tensioning unit for vertical plane mounting or, on request, stainless steel AISI 304 brackets for horizontal mounting

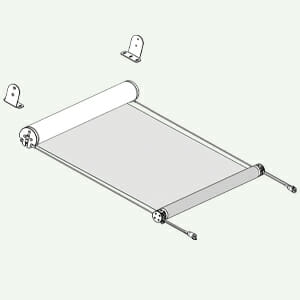

CHARACTERISTICS:

Application: horizontal
Installation: outdoors, purposely designed for building façades
Headbox: CT135 extruded aluminium round headbox with removable cover. Stainless steel cheeks AISI 316 composed of two flanges that clamp onto the bar guides and hence support the whole blind. The box is hence suspended on the bar guides an not fixed to the building
Roller tube: Ø 85 mm galvanized steel tube with slot to facilitate fabric removal
Side channels: Ø 6 mm, 19 strand stainless steel (AISI 316) wire cable guides
Hem bar with incorporated forced traction mechanism: FD75 Ø 75 mm extruded aluminium round tube with gas pistons, powder coated die-cast aluminium caps assembly with 33 return pulleys and AISI 316 stainless steel cable section Ø 2 mm, 49 wires
Colours: glossy white RAL 9010, matt white RAl 9016, glossy ivory RAL 1013, glossy brown RAL 8017, matt grey RAL 7016, smooth micaceus grey, matt black RAL 9005, silver anodised
Operation: motorised operation; 230V/50Hz M50 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: On supplement stainless steel AISI 316 fixing brackets for vertical or horizontal plane mounting (up) or for wall mounting (down). Stainless steel cable tensioning unit for vertical plane mounting included in the price
