L3 SERIES

  1. Home
  2. Roller blinds
  3. GUIDED ROLLER BLINDS
  4. L3 SERIES

Application: Vertical
Installation: indoors/outdoors
Wind resistance: Class 2

The L3 SERIES uses aluminium guides in which only the endbar slides, while the fabric remains outside the guide. Manual, by crank or motorized, they are suitable for small and large windows.

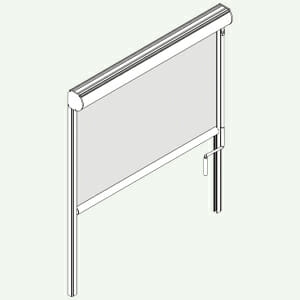

CHARACTERISTICS:

Application: vertical
Installation: indoors/outdoors
Headbox: C90/CT90 extruded aluminium headbox with removable cover and aluminium end cheeks. For supplement end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting
Roller tube: Ø 42 mm extruded aluminium tube with slot to facilitate fabric removal
Side channels:  G31 extruded aluminium side channels in which only the bottom rail runs (fabric unguided) to restrain movement of the blind
Hem bar: FD35 round or FP33 flat (for face mounting directly to window frame) extruded aluminium bottom rail with internal galvanized steel weight and PVC end caps
Colours: white Ral 9010, matt black Ral 9005, silver anodised
Operation: crank operation, gear box ratio 1:3.3 in zama with endstop. Ø 13 mm removable aluminium crank rod with magnetic coupling, PVC coated jointed handle and PVC clip
Side channels mounting: mounting in recess or wall (only with FP33)
Headbox mounting: ceiling. On supplement box self supporting on side channels or side mounting of the headbox

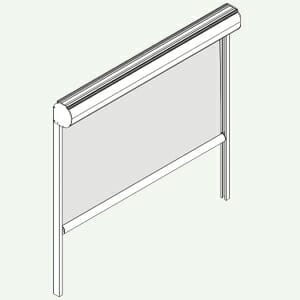

CHARACTERISTICS:

Application: vertical
Installation: indoors/outdoors
Headbox: C90/CT90 extruded aluminium headbox with removable cover and aluminium end cheeks. For supplement end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting
Roller tube: Ø 44/60 mm extruded aluminium tube with slot to facilitate fabric removal
Side channels:  G31 extruded aluminium side channels in which only the bottom rail runs (fabric unguided) to restrain movement of the blind
Hem bar: FD35 round or FP33 flat (for face mounting directly to window frame) extruded aluminium bottom rail with internal galvanized steel weight and PVC end caps
Colours: white Ral 9010, matt black Ral 9005, silver anodised
Operation: motorised operation; 230V/50Hz tubolar motor M40/M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Side channels mounting: mounting in recess or wall (only with FP33)
Headbox mounting: ceiling. On supplement box self supporting on side channels or side mounting of the headbox

CHARACTERISTICS:

Application: vertical
Installation: indoors/outdoors
Headbox: C105/CT105 extruded aluminium headbox with removable cover and aluminium end cheeks. For supplement end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting
Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal
Side channels:  GC20 extruded aluminium side channels in which only the bottom rail runs (fabric unguided) to restrain movement of the blind
Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps
Colours: white Ral 9010, matt black Ral 9005, silver anodised
Operation: crank operation, gear box ratio 1:9 in zama with endstop. Ø 13 mm removable aluminium crank rod with magnetic coupling, PVC coated jointed handle and PVC clip. 45°/90° through wall coupling on supplement
Side channels mounting: mounting in recess
Headbox mounting: ceiling. On supplement box self supporting on side channels or side mounting of the headbox

CHARACTERISTICS:

Application: vertical
Installation: indoors/outdoors
Headbox: C105/CT105 extruded aluminium headbox with removable cover and aluminium end cheeks. For supplement end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting
Roller tube: Ø 78 mm galvanized steel tube with slot to facilitate fabric removal
Side channels: GC20 extruded aluminium side channels in which only the bottom rail runs (fabric unguided) to restrain movement of the blind
Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps
Colours: white Ral 9010, matt black Ral 9005, silver anodised
Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Side channels mounting: mounting in recess
Headbox mounting: ceiling. On supplement box self supporting on side channels or side mounting of the headbox

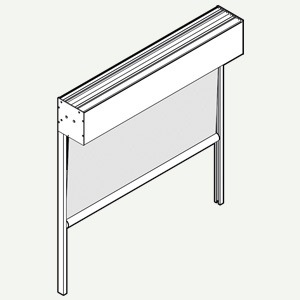

CHARACTERISTICS:

Application: vertical
Installation: indoors/outdoors
Headbox: C150 extruded aluminium headbox with removable cover and powder coated zinc plated steel end cheeks. For supplement end cheeks that permit the box to be fitted directly to the side channels or end cheeks for side mounting
Roller tube: Ø 78/85 mm galvanized steel or Ø 110 mm extruded aluminium tubes with slot
Side channels: GC20 extruded aluminium side channels in which only the bottom rail runs (fabric unguided) to restrain movement of the blind
Hem bar: FD42 round extruded aluminium bottom rail with internal galvanized steel weight and POM end caps
Colours: white Ral 9010, matt black Ral 9005, silver anodised
Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Side channels mounting: mounting in recess
Headbox mounting: ceiling. On supplement side mounting of the headbox
