APPLICATION: Horizontal, Inclined, Vertical
INSTALLATION: Internal or external
WID RESISTANCE: Class 3

An elegant and sturdy awning, designed for outdoors and to cover large windows and verandas, suitable for installation in a vertical, horizontal or inclined position.
Equipped with an effective system to keep the fabric tension constant in any position. Multi-modularity with the motorized winding system up to 2 modules per motor. Optimal protection is ensured by limiting the greenhouse effect to the max. Special spacer supports can ensure proper air circulation.

PRODUCT BRANDED FOR

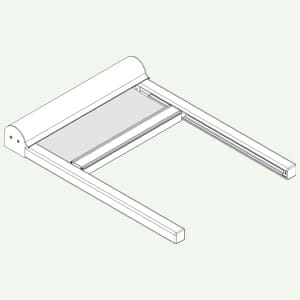

CHARACTERISTICS

APPLICATION: vertical / horizontal
INSTALLATION: covering of verandas and windows. Optimal protection through the maximum reduction of the greenhouse effect
HEADBOX: CV140 made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pair of die-cast aluminum side heads
ROLLER TUBE: galvanized steel Ø 78 mm
SIDE CHANNELS: GVS made extruded aluminum complete with die-cast aluminum caps
HEM BAR: FV92 traction bar containing the pre-tensioning system with an inspectable casing, mounted on ball bearings. The sheet is held in tension by a large spring positioned inside the pull bar. The traction system is carried out through a PES HT Ø 2,5 mm core braided cable contained into the tracks.
COLOUR: White RAL 9010, Anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M50 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
MOUNTING: range of fixing brackets for mounting on any surface (type A and B brackets included, type C / D / E on request)
SIZES: Min. L 150 x H 100 cm – Max L 450 x H 500 cm
Large surfaces, up to 18 m² per module

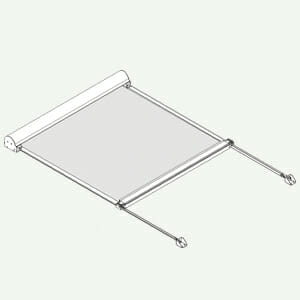

CHARACTERISTICS
APPLICATION:
vertical / horizontal
INSTALLATION:
covering of verandas and windows. Optimal protection through the maximum reduction of the greenhouse effect
HEADBOX:
CV140 made of extruded aluminum consisting of a fixed and a movable part that can be inspected. Pairs of painted galvanized steel side heads
ROLLER TUBE:
galvanized steel Ø 78 mm with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS:
lateral made up of two AISI 316 stainless steel Ø 6 mm ropes with 19 wires that support the extruded aluminum traction bar
Background:
FV92 traction bar containing the pre-tensioning system with inspectionable casing, mounted on ball bearings. The fabric is held in tension by a large spring positioned inside the pull bar. The traction system is carried out through a PES HT Ø 2,5 mm core braided cable contained in the tracks
COLOUR:
White RAL 9010, Anodized silver
OPERATION:
single-phase tubular motor 230V / 50Hz M50 with limit switch adjustment. Thermal protection and IP44 protection index against water splashes. Switch not included
Lower mounting: galvanized steel lower brackets for mounting the tracks and return cables. AISI 304 stainless steel is available on request
SIZES:
Min. L 150 x H 100 cm – Max L 450 x H 500 cm
