Versatility and functionality for applications on any inclination.

VERY VERSATILE INDOOR CURTAIN, IDEAL OF APPLICATIONS ON VERTICAL, INCLINED, HORIZONTAL OR CURVED WINDOWS. The system is exceptionally reliable and silent; the small-sized profiles are easily mounted on window frames. The awning is available with manual (winch) or motorized control; lateral or central opening options.
The small-sized profiles are easily mounted on window frames. The Wintermeeting system uses a toothed belt movement that allows the awning to be blocked at any point along its path.

CHARACTERISTICS:

APPLICATION: for any type of vertical / horizontal / inclined / curved substructure
INSTALLATION: for internal use only. Minimum width 70 cm
SIDE CHANNELS: GM32 made of extruded aluminum
BOTTOM: FD21 extruded aluminum round drive bars (one every 40-50 cm): the first is fixed to a drive plate connected to the drive belt, the others are dragged/pushed along the tracks by the first one
COLOR: White RAL 9010, anodized silver, RAL painting of your choice
OPERATION: double shaft central motor, single-phase JA series 230V / 50Hz, 85 rpm adjustment range. Thermal protection and IP44 protection index against water splashes. Motor inserted on an aluminum traction bar connected to a pinion in the side heads, aluminum toothed pulleys that move toothed drive belts (polyurethane / high-strength steel cables) inside the side tracks
HEADBOX: extruded aluminum CM63 to which the first sheet is fixed with velcro
MOUNTING: on the wall with the use of special helical levers. Wall mounting with articulated slides (suitable for darkening curtains) or ceiling mounting with “L” brackets as a supplement
SIZES: Min. L 100 cm x H 100 cm – Max L 300 x H 400 cm / L 200 x H 600 cm

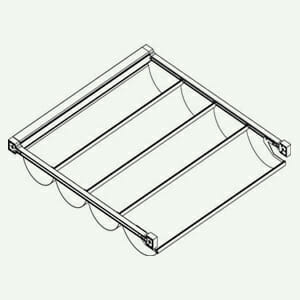

STANDARD: stretched cloths with awning up to the maximum extension; corrugated cloths on request

CHARACTERISTICS:

APPLICATION: for any type of vertical / horizontal / inclined / curved substructure
INSTALLATION: for internal use only. Minimum width 60 cm
SIDE CHANNELS: extruded aluminum GM32
BOTTOM: FD21 extruded aluminum round drive bars (one every 40-50 cm): the first is fixed to a drive plate connected to the drive belt, the others are dragged/pushed along the tracks by the first one
COLOR: White RAL 9010, anodized silver, RAL painting of your choice

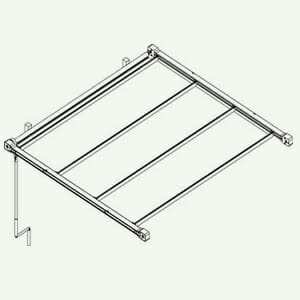

OPERATION: with winch, 1: 3.3 rpm ratio with limit switch, mounted on one head, connected via a shaft to a pinion in the other head for handling toothed drive belts (polyurethane / high resistance steel cables) internal side tracks. Extruded aluminum Ø 13 mm tubular rod, removable with magnetic attachment; jointed PVC-coated handle
MOUNTING: on the wall with the use of special helical levers. Wall mounting with articulated slides (ideal for darkening curtains) or ceiling mounting with “L” brackets as a supplement
SIZES: Min. L 100 cm x H 100 cm – Max L 300 x H 400 cm / L 200 x H 600 cm
STANDARD: stretched cloths with awning up to the maximum extension; corrugated cloths on request

MATCHING FABRICS
