APPLICATION: Vertical
INSTALLATION: Internal or external
WIND RESISTANCE: Class 3

The ZIP system is ideal for vertical and horizontal blinds, for outdoor and indoor applications, both small and large.
ZIP IS EQUIPPED WITH A PATENTED SYSTEM THAT COMPLETELY CLOSES THE SIDE SPACES, ALLOWING FLAWLESS SLIDING AND RETAINING THE CANVAS IN GUIDE, EVEN ON LARGE SIZES. HIGH WIND RESISTANCE THANKS TO THE BALANCED DISTRIBUTION OF THE STRETCH FABRIC ALONG THE WHOLE VERTICAL ZIPPER.

PRODUCT BRANDED FOR

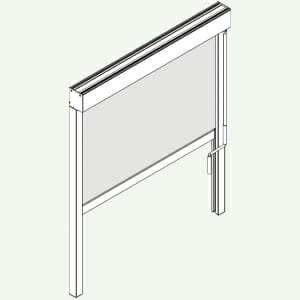

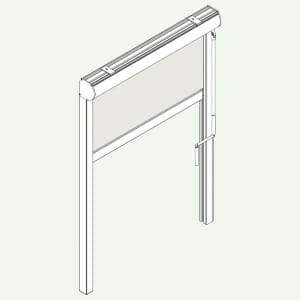

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C90 / CT90 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 42 mm with ogive to facilitate fabric maintenance
SIDE CHANNELS: GS40 with extruded aluminum closing profile and internal core with PVC fins for perfectly sliding and holding the sheet within the rail. ZIP’s tracks guarantee total room darkening where required
HEM BAR: extruded aluminum FZ47 plate, suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Extruded aluminum tubular rod Ø 13 mm, removable with magnetic attachment; jointed handle with PVC-coated handle, joint applied directly to the winch, PVC rod stop. As a supplement, delayed 90 ° maneuver
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
SIZES: Min. L 80 cm x H 100 cm – Max L 220 x H 250 cm
OPTIONAL : PVC rainproof profile (white, gray, black) for FZ47 backdrop

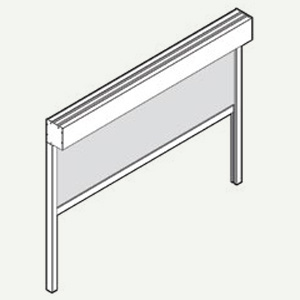

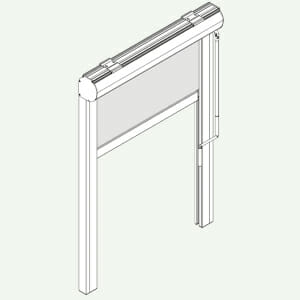

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C90 / CT90 made of extruded aluminum, consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS40 with extruded aluminum closing profile and internal core with PVC fins for perfect sliding and holding the sheet into the rack. Closing profile for supplementary built-in rail. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate, suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40, complete with mechanical limit switch and power cable, end protection, protection index against water splashes IP44. Switch not included
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
SIZES: Min. L 80 cm x H 100 cm – Max L 220 x H 220 cm
OPTIONAL : PVC rainproof profile (white, gray, black) for FZ47 backdrop

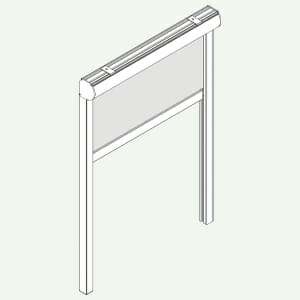

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C105 / CT105 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 42 mm or galvanized steel Ø 78 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS40 with extruded aluminum closing profile and internal core with PVC fins for perfect sliding and holding the sheet into the rail. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate, suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, rpm ratio 1: 3.3 with limit switch (roller Ø 42 mm) or rpm ratio 1: 4.7 without limit switch (roller Ø 78 mm). Extruded aluminum tubular rod Ø 13 mm, removable, with magnetic attachment; articulated handle with PVC-coated handle, PVC rod stop. As a supplement, delayed 90 ° maneuver
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
SIZES:
With roller Ø 42 Min. L 80 cm x H 100 cm – Max L 250 x H 320 cm
With roller Ø 78 Min. L 260 cm x H 100 cm – Max L 450 x H 300 cm

OPTIONAL : PVC rainproof profile (white, gray, black) for FZ47 backdrop

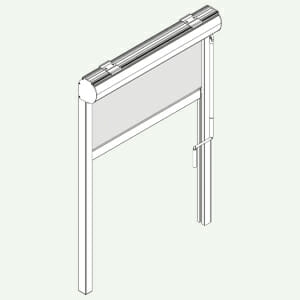

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C105 / CT105 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm or galvanized steel Ø 78 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS40 with extruded aluminum closing profile and internal core with PVC fins for perfect sliding and holding the sheet into the rail. Closing profile for supplementary built-in rail. The tracks of the ZIP system guarantee total blackout where required
HEM BAR: extruded aluminum FZ47 plate, ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, protection against water splashes IP44. Switch excluded
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
SIZES:
With roller Ø 60 Min. L 100 cm x H 100 cm – Max L 300 x H 320 cm
With roller Ø 78 Min. L 310 cm x H 100 cm – Max L 450 x H 300 cm

OPTIONAL : PVC rainproof profile (white, gray, black) for FZ47 backdrop

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C105 / CT105 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: galvanized steel Ø 78 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS65 with closing extruded aluminum profile and internal core with PVC fins for perfect sliding and holding the sheet into the rail. ZIP’s tracks guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate, suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: with TS Zamak winch, suitable for outdoor use, 1: 9 rpm ratio without limit switch. Extruded aluminum tubular rod Ø 13 mm, removable, with magnetic attachment; jointed handle with PVC-coated handle, PVC rod stop.
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
SIZES: Ø 78 Min. L 100 cm x H 100 cm – Max L 450 x H 300 cm

OPTIONAL : PVC rainproof profile (white, gray, black) for FZ47 backdrop

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C105 / CT105 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm or galvanized steel Ø 78 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS65 with closing extruded aluminum profile and internal core with PVC fins for perfect sliding and holding the sheet into the rail. ZIP’s tracks guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate, ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, IP44 protection against water splashes. Switch not included.
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the headbox
SIZES:
With roller Ø 60 Min. L 100 cm x H 100 cm – Max L 300 x H 320 cm
With roller Ø 78 Min. L 310 cm x H 100 cm – Max L 450 x H 300 cm

OPTIONAL : PVC rainproof profile (white, gray, black) for FZ47 backdrop

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C150 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of heads in galvanized iron painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: galvanized steel Ø 78/85 mm or extruded aluminum Ø 110 mm n with ogive
SIDE CHANNELS: GS65 with closing extruded aluminum profile and internal core with PVC fins for perfect sliding and holding the sheet into the rail. ZIP’s tracks guarantee total darkening where required
HEM BAR: F56 flat extruded aluminum ballasted with galvanized iron profile, complete with sliding PVC caps. On request rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, IP44protection against water splashes. Switch not included
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box

OPTIONAL : PVC rainproof profile (white, gray, black) for F56 backdrop

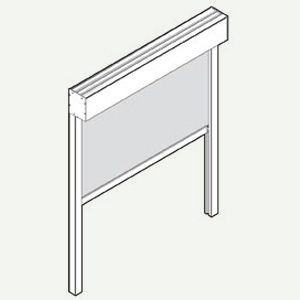

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: squared C104 made of extruded aluminum and consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 42 mm or galvanized steel Ø 78 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS41 with a closing profile made of extruded aluminum and internal core with PVC tongue for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. The tracks of our ZIP system guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate ballasted with galvanized iron profile, complete with sliding PVC caps and brush. In addition, flat F56 backdrop made of extruded aluminum with sliding PVC caps and brush, complete with Ultra Lock ground locking system (only with large speed gear 1: 4.7). On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: with Zamak winch, rpm ratio 1: 3.3 with limit switch (roller Ø 42 mm) or rpm ratio 1: 4.7 without limit switch (roller Ø 78 mm). Extruded aluminum tubular rod Ø 13 mm, removable, with magnetic attachment; jointed handle with PVC-coated handle, PVC rod stop. At a supplement, delayed 90 ° maneuver
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :
– ULTRA LOCK ground locking system with extra charge only with flat bottom extruded aluminum F56 with PVC sliding caps max 300 (length) X 300 (height)
– PVC rainproof profile (white, gray, black) for F56 backdrop

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: squared C104 made of extruded aluminum consisting of a fixed and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm or galvanized steel Ø 78 mm with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS: GS41 with extruded aluminum closing profile and internal core with PVC fins for perfect sliding and holding the sheet into the rail, patented device n ° 102018000007221. Closing profile for supplementary built-in rail. The tracks of our ZIP system guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate ballasted with galvanized iron profile, complete with sliding PVC caps and brush. In addition, flat F56 backdrop made of extruded aluminum with sliding PVC caps and brush, complete with Ultra Lock ground locking system. Not combinable with a closing profile for built-in rail. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, thermal protection, IP44protection against water splashes. Switch not included. With Somfy Maestria io M50 10/17 engine Ultra Lock locking system mandatory, included in the Ultra Lock supplement
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :
– ULTRA LOCK ground locking system with supplement only with flat bottom F56 made extruded aluminum with sliding PVC caps and Somfy Maestria io M50 10/17 motor, included in the supplement max 300 (length) X 300 (height)
– PVC rainproof profile (white, gray, black) for FZ47 / F56 backdrops

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: squared C104 made of extruded aluminum, consisting of a fixed part and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: galvanized steel Ø 78 mm with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS: GS66 with a closing profile made of extruded aluminum and internal core with PVC tongue for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. The tracks of the ZIP system guarantee total blackout where required
HEM BAR: FZ47 plate made of extruded aluminum suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. In addition, F56 extruded aluminum flat backdrop in with sliding PVC caps and brush, complete with Ultra Lock ground locking system. On request rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver. Removable winch operating rod white RAL 9010, anodized silver or matt black RAL 9005
OPERATION: with TS Zamak winch, suitable for outdoor use, 1: 9 rpm ratio without limit switch. Ø 13 mm extruded aluminum tubular rod, removable, with magnetic attachment; articulated handle with PVC-coated handle, PVC rod stop
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :
– ULTRA LOCK ground locking system with extra charge only with flat bottom F56 made of extruded aluminum with PVC sliding caps in, max 300 (length) X 300 (height)
– PVC rainproof profile (white, gray, black) for FZ47 / F56 backdrops

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C104 made of extruded aluminum, consisting of a fixed part and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm or galvanized steel Ø 78 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS66 with a closing profile made of extruded aluminum and internal core with PVC tongue for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. Closing profile for supplementary built-in rail. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate ballasted with galvanized iron profile, complete with sliding PVC caps and brush. In addition, flat F56 backdrop made of extruded aluminum with sliding PVC caps and brush, complete with Ultra Lock ground locking system. Not combinable with a closing profile for built-in rail. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver. Removable winch operating rod white RAL 9010, anodized silver or matt black RAL 9005
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, IP44protection against water splashes. Switch not included. With Somfy Maestria io M50 10/17 engine Ultra Lock locking system mandatory, included in the Ultra Lock supplement
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :
– ULTRA LOCK ground locking system with supplement only with flat bottom F56 in extruded aluminum with sliding PVC caps and Somfy Maestria io M50 10/17 motor, included in the supplement, max 300 (length) X 300 (height)
– PVC rainproof profile (white, gray, black) for FZ47 / F56 backdrops

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C91 made of extruded aluminum consisting of a fixed part and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 42 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS41 with a closing profile made of extruded aluminum and internal core with PVC fins for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: FZ47 plate made of extruded aluminum, suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver. Removable winch operating rod white RAL 9010, anodized silver or matt black RAL 9005
OPERATION: with Zamak winch, 1: 3.3 rpm ratio with limit switch. Ø 13 mm extruded aluminum tubular rod, removable with magnetic attachment; articulated handle with PVC-coated handle, joint applied directly to the winch, PVC rod stop. As a supplement, the 90 ° maneuver can be delayed
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :
– PVC rainproof profile (white, gray, black) for FZ47 backdrops

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C91 made of extruded aluminum consisting of a fixed part and a movable part that can be inspected; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm with ogive to facilitate the fabric’s maintenance
SIDE CHANNELS: GS41 with a closing profile made of extruded aluminum and internal core with PVC fins for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. Closing profile for supplementary built-in rail. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: extruded aluminum FZ47 plate, suitably ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black)
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver. Removable winch operating rod white RAL 9010, anodized silver or matt black RAL 9005
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, IP44 protection against water splashes. Switch not included.
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :

– PVC rainproof profile (white, gray, black) for FZ47 / F56 backdrops

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: C124 squared made of extruded aluminum consisting of a fixed part and two movable parts that can be inspected, one frontal and one closing side for complete internal rewinding of the roller; pairs of aluminum end caps painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm or galvanized steel Ø 78 mm with ogive
SIDE CHANNELS: GS41 with extruded aluminum closing profile and internal core with PVC fins for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. Closing profile for supplementary built-in rail. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: retractable FZ47 plate made of extruded aluminum and ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black) which remains visible outside the box
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver.
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, IP44protection against water splashes. Switch not included.
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :

– PVC rainproof profile (white, gray, black) for FZ47 backdrops

CHARACTERISTICS

APPLICATION: vertical
INSTALLATION: internal / external
HEADBOX: squared C124 made of extruded aluminum, consisting of a fixed part and two movable parts that can be inspected, one frontal and one closing side for complete internal rewinding of the roller, bottom included; pairs of aluminum end caps in painted in the same color as the box. As a supplement, self-supporting driving heads or side mounting heads
ROLLER TUBE: extruded aluminum Ø 60 mm or galvanized steel Ø 78 mm with ogive to facilitate the maintenance of the fabric
SIDE CHANNELS: GS66 with extruded aluminum closing profile and internal core with PVC tabs for perfect sliding and holding of the sheet into the rail, patented device n ° 102018000007221. Closing profile for supplementary built-in rail. The tracks of the ZIP system guarantee total darkening where required
HEM BAR: FZ47 extruded aluminum plate, ballasted with galvanized iron profile, complete with sliding PVC caps and brush. On request, rainproof rubber profile (white, gray, black) which remains visible outside the box
COLOUR: White RAL 9010, ivory RAL 1013, brown RAL 8017, matt black RAL 9005, anodized silver.
OPERATION: single-phase tubular motor 230V / 50Hz M40 / M50, complete with mechanical limit switch and power cable, end protection, IP44 protection against water splashes. Switch not included.
MOUNTING: front, side or ceiling. Supplementary self-supporting tracks or lateral fixing of the box
OPTIONAL :

– PVC rainproof profile (white, gray, black) for FZ47 backdrops

REFERENCES

CONTACT US FOR INFORMATION OR DOWNLOAD OUR COMPLETE CATALOGUE HERE
