ZOOMTECH® | F SERIES WITHOUT HEADBOX

  1. Home
  2. Roller blinds
  3. ZOOMTECH® roller blinds
  4. ZOOMTECH® | F SERIES WITHOUT HEADBOX

Application: Vertical
Installation: Internal

Wall or ceiling mounting with roller featuring patented Zoomtech® technology.

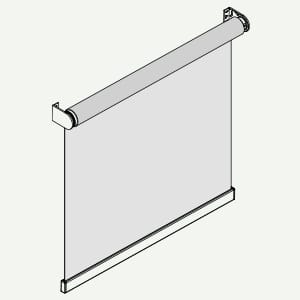

Render di una tenda a rullo Zoomtech serie F 110 senza cassonetto

CHARACTERISTICS:

Roller tube with patented Zoomtech® technology: Ø 44 mm extruded aluminum tube with slot
Brackets: 47×75 mm steel powder coated brackets (white Ral 9010, grey Ral 9006, matt black 9005)
Hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz M40 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: wall or ceiling
Hem bar colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Brackets colours: white RAL 9010, matt grey RAL 7016, matt black RAL 9005
Dimensions: with Ø 44 – Min. W 200 – Max. W 500 x H 300 cm

Render di una tenda a rullo Zoomtech serie F 107 senza cassonetto

CHARACTERISTICS:

Roller tube with patented Zoomtech® technology: Ø 60 mm extruded aluminum tube
Brackets: 80×92 mm steel powder coated brackets with PVC covers (white Ral 9010, grey Ral 9006, matt black 9005)
Hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz M50 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: wall or ceiling
Hem bar colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Brackets colours: white RAL 9010, matt grey RAL 7016, matt black RAL 9005
Dimensions: with Ø 60 – Min. W 300 – Max. W 600 x H 300 cm

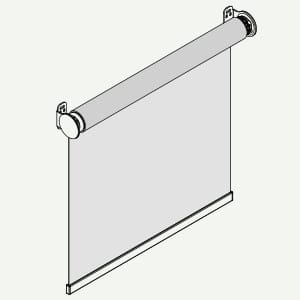

Render di una tenda a rullo Zoomtech serie F 109 senza cassonetto

CHARACTERISTICS:

Roller tube with patented Zoomtech® technology: Ø 78 mm galvanized steel tube with slot
Brackets: 110×120 mm steel powder coated brackets with PVC covers (white Ral 9010, grey Ral 9006, matt black 9005). Supplement for 110x120mm AISI 304 stainless steel brackets
Hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz M50 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: wall or ceiling
Hem bar colours: white RAL 9010, matt white RAL 9016, ivory RAL 1013, brown RAL 8017, matt grey RAL 7016, smooth micaceous grey, matt black RAL 9005, anodized silver
Brackets colours: white RAL 9010, matt grey RAL 7016, matt black RAL 9005
Dimensions: with Ø 78 – Min. W 300 – Max. W 700 x H 300 cm

MATCHING FABRICS

FILTRANTI:
M-Screen 8505/8501
Sunscreen Satiné 5500

OPACHI:
Colortex

OSCURANTI:
Darktex
Kibo
